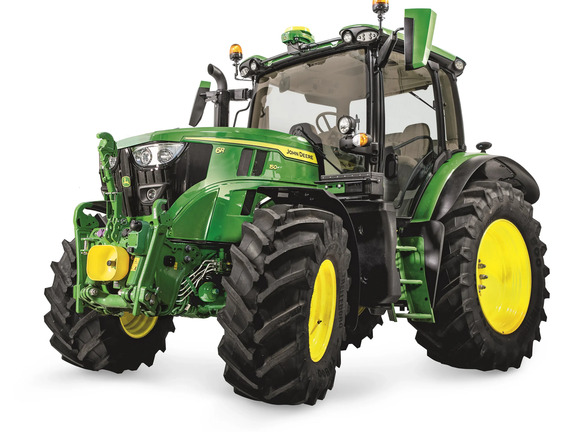

6R 110Tractor
- 135 hp (99 kW) Max Power With IPM (ECE-R120)
- 4.5 L Engine With 4 Cylinders1
- Wheelbase: 6.5 t and 2.58 m
- AutoQuad™ or AutoPowr™ Transmission Choice

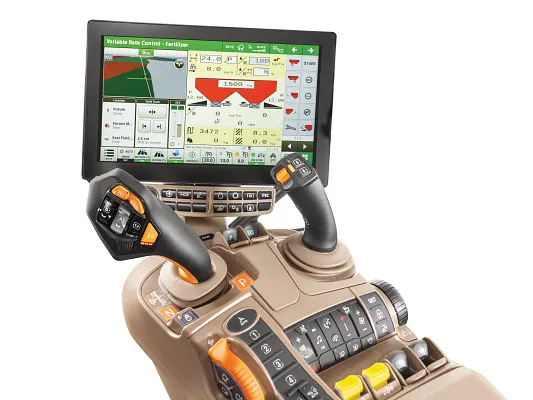

The new G5ᴾˡᵘˢ display, our largest screen ever: More space for your information. A faster processor for shorter boot up times. With the StarFire™ 7000 receiver, the G5/G5ᴾˡᵘˢ CommandCenter™ and JDLink™ connectivity, the 6R has everything you need for a quick start with Precision agriculture already on board in base model. Add the free John Deere Operations Center™ and you are ready to go.

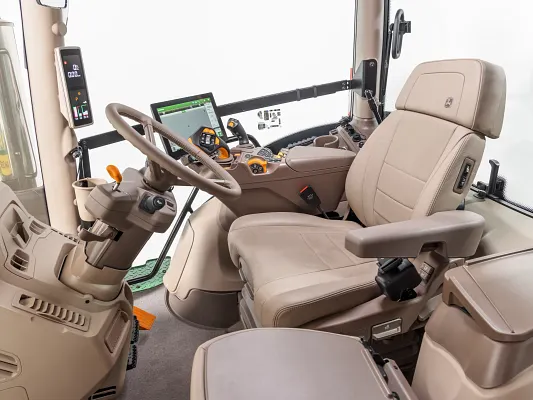

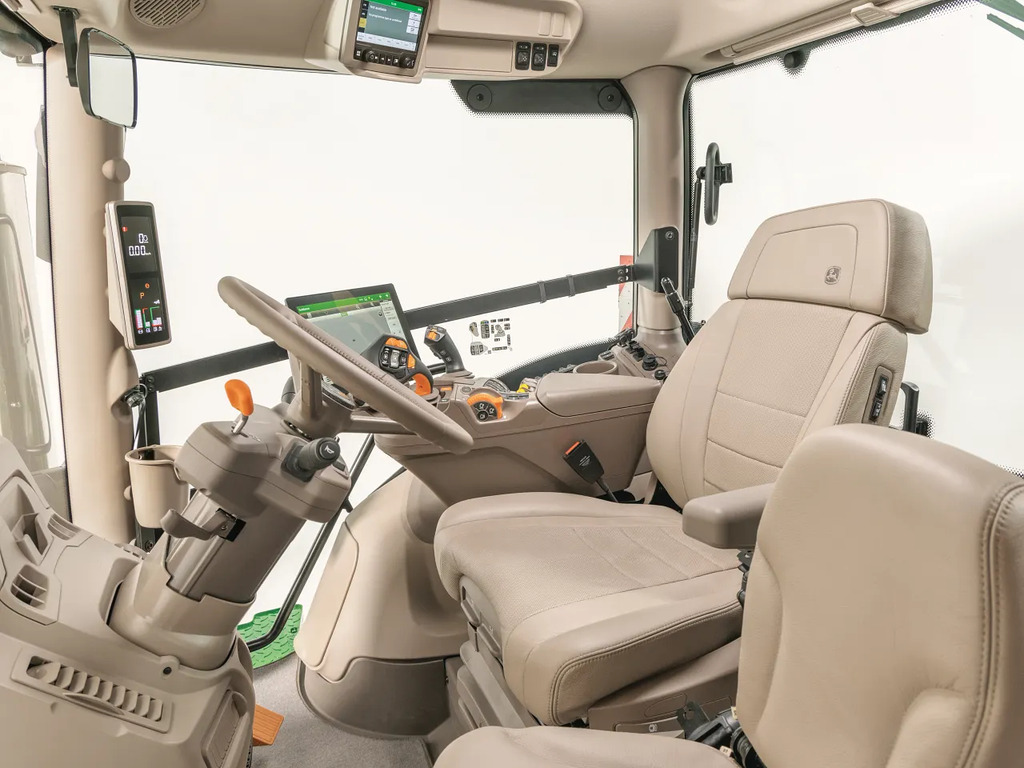

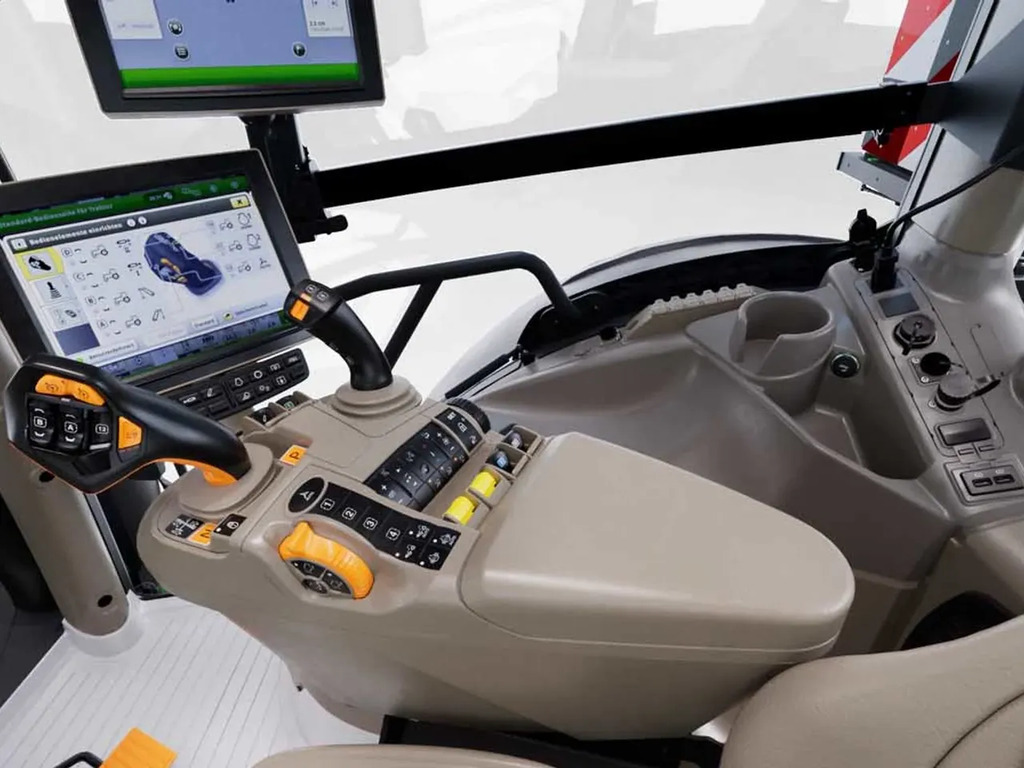

You’ll do your best work ever in this extra spacious 3.33 m³ very quiet 71 dB(A) cab and its new Corner Post Display. Master the power of the 6R with ease on the CommandPRO™ joystick and its 11 reconfigurable buttons.

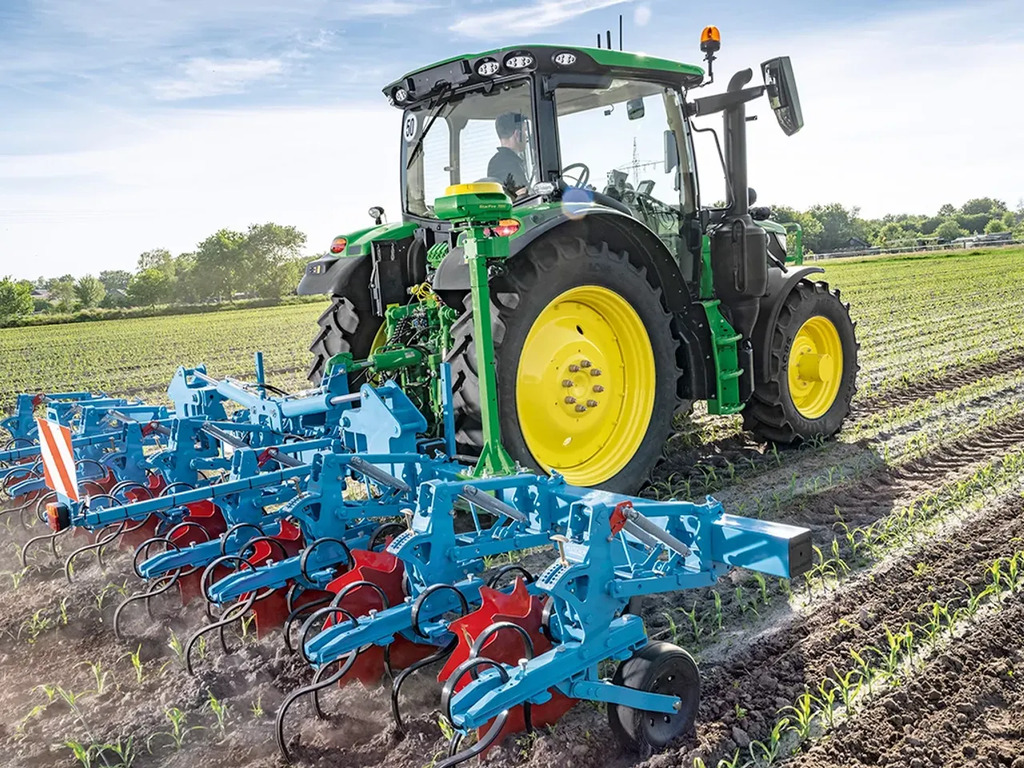

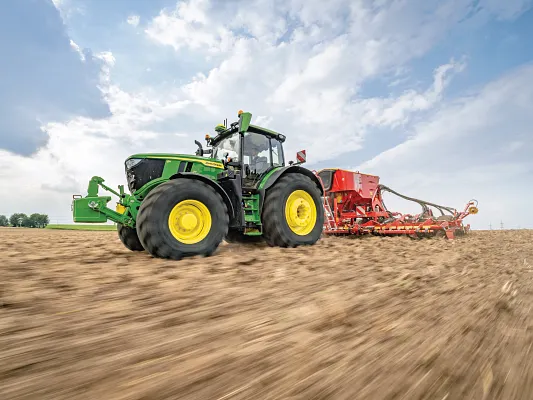

Put the right seed in the right place at the right depth for successful germination. Then apply exactly the right amount of care. John Deere 6R Tractors with Precision Ag Technology are your ticket to the benefits of site-specific farming features like Section Control and variable Rate Control.
| Specs & Compare | ||||
|---|---|---|---|---|
| John Deere 6R 110 Tractor |
| Engine Make | John Deere PowerTech™ PSS | |||
|---|---|---|---|---|
| Engine Model | PowerTech™ PSS | |||
| Engine Family | SJDXL06.8309 | |||
| Displacement | 4.5 L | |||
| Rated Engine Power | 82 kW | |||
| Rated Engine Power | 111 PS | |||
| Maximum Engine Power | 89 kW | |||
| Maximum Engine Power | 121 PS | |||
| Transmission Type | AutoQuad™ PLUS, AutoQuad™ PLUS ECO Shift™, AutoPowr™, CommandQuad™ PLUS ECO Shift™ | |||
| Rear Hitch Category (SAE Designation) | Category 3N | |||
| Pump Rated Output | 114/155 L 30/41 gal. | |||
| Base Machine Weight | 6500 kg |
| Wheel or Track Configuration | Wheel | |||
|---|---|---|---|---|
| Drive Type | 4WD |
| Engine Make | John Deere PowerTech™ PSS | |||
|---|---|---|---|---|
| Engine Model | PowerTech™ PSS | |||
| Engine Family | SJDXL06.8309 | |||
| Emissions Certifications | Stage V | |||
| Displacement | 4.5 L | |||
| Aspiration | Dual turbochargers, wastegate turbo with fixed geometry turbo in series | |||
| Number of Cylinders | 4 | |||
| Cylinder Liners | Wet-sleeve | |||
| Aftertreatment Type | Lifetime diesel particle filter (DPF), diesel oxidation catalyst (DOC), and selective catalytic reduction (SCR) using diesel exhaust fluid (DEF) | |||
| Intelligent Power Management (IPM) | 20 | |||
| Rated Engine Speed | 2100 rpm | |||
| Rated Engine Power | 82 kW | |||
| Rated Engine Power | 111 PS | |||
| Rated Engine Power with IPM | 96 kW | |||
| Rated Engine Power with IPM | 130 PS | |||
| Maximum Engine Speed | 1900 rpm | |||
| Maximum Engine Power | 89 kW | |||
| Maximum Engine Power | 121 PS | |||
| Maximum Engine Power with IPM | 99 kW | |||
| Maximum Engine Power with IPM | 135 PS | |||
| Maximum Engine Torque | 515 Nm 379.8 lb-ft | |||
| Constant Power Range | 1,500 - 2,100 rpm | |||
| Power Bulge | 10 % | |||
| Bore and Stroke | 106.5 x 127 mm | |||
| Compression Ratio | 16.7:1 | |||
| Lubrication | Pressure lubrication | |||
| Cooling System Type | Liquid | |||
| Fuel Type | Ultra-low sulfur diesel | |||
| Air Cleaner Type | PowerCore ® G2 Air Filter with pre-cleaning | |||
| Torque Rise | 40 % |
| Transmission Type | AutoQuad™ PLUS, AutoQuad™ PLUS ECO Shift™, AutoPowr™, CommandQuad™ PLUS ECO Shift™ | |||
|---|---|---|---|---|
| Maximum Speed Forward | 50 km/h / 31 mph | |||
| Minimum Speed Forward | 0.03 km/h / 0.02 mph | |||
| Creeper | Available | |||
| Reverser | Electrical | |||
| Clutch | Wet | |||
| Cruise Control | Yes |
| Rated PTO Power | 62 kW | |||
|---|---|---|---|---|
| Rated PTO Power | 84 PS | |||
| Rated PTO Power with IPM | 75 kW | |||
| Rated PTO Power with IPM | 102 PS | |||
| Economy PTO Speeds | 540 rpm / 1,000 rpm | |||
| Engine rpm at Rated PTO Speeds (540/1.000) | 1967 / 1962 | |||
| Engine rpm at Rated PTO Speeds (540/540E/1.000) | 1967 / 1496 / 1962 | |||
| Engagement Method | Electrohydraulic switch | |||
| PTO Clutch | Multi-disk | |||
| Number of Splines | 6 and 21 |
| PTO Speed | 1000 | |||
|---|---|---|---|---|
| Front PTO Rotation | Clockwise rotation (viewed in direction of travel) | |||
| Engine rpm (at Rated PTO Speeds) | 1969 rpm | |||
| Maximum PTO Power | 80 kW | |||
| Maximum PTO Power | 109 PS | |||
| Front Number of Splines | 21 |
| Front Hitch Category | Category 3N | |||
|---|---|---|---|---|
| Lift Capacity Through Full Lift Range at Coupling Points | 3300 kg | |||
| Maximum Lift Capacity at Coupling Points | 4400 kg | |||
| Number of Front Selective Control Valves (SCVs) | 1 | |||
| Electric Power | ISOBUS Connector |
| Rear Hitch Category (SAE Designation) | Category 3N | |||
|---|---|---|---|---|
| Maximum Lift Capacity Directly at Coupling Points | 5700 kg | |||
| Lift Capacity Through Full Lift Range Directly at Coupling Points | 4100 kg | |||
| Lift Capacity Through Full Lift Range at 610-mm Behind Hitch Point | 3600 kg | |||
| Sensing Type | Electronic lower link sensing; load and depth control, infinite mix, float | |||
| Draft Control Sensing | Yes |
| Drawbar Category | Category 2 | |||
|---|---|---|---|---|
| Maximum Vertical Load | Road use 250 mm (9.8 in.) extended: 1600 kg 3527.4 lb |
| Hydraulic System Type | Pressure-and-flow compensated (PFC) system with load sensing function | |||
|---|---|---|---|---|
| Pump Rated Output | 114/155 L 30/41 gal. | |||
| Maximum Operating Pressure | 205 bar | |||
| Number of Rear Selective Control Valves (SCVs) | M-SCVs: Four E-SCVs: Five | |||
| Available Flow at a Single Rear SCV | 200 Series: 100 L 26.4 gal. 450 Series: 110 L 29 gal. | |||
| Number of Mid Selective Control Valves (SCVs) | 3 | |||
| SCV Control | Mechanical/electrical | |||
| Auxiliary Hydraulic Features | 3 |
| Front Axle Type | Standard: Mechanical Front Wheel Drive axle; Optional: Triple Link Suspension (TLS™) | |||
|---|---|---|---|---|
| Front Axle Differential Lock | Yes |
| Rear Axle Type | Flange axle/rack and pinion axle | |||
|---|---|---|---|---|
| Rear Differential Lock | Electrohydraulically with oil-cooled clutch | |||
| Differential Controls | Oil-cooled, self-equalizing, self-adjusting, and hydraulically actuated | |||
| Final Drive | Three planetary gear reduction |
| Steering Type | Dynamic load sensing, hydrostatic, flow metering, variable ratio steering optional | |||
|---|---|---|---|---|
| Primary Brakes | Electrohydraulic with oil-cooled clutch | |||
| Trailer Brakes | Three planetary gear reduction | |||
| Parking Brake | Intergrated parking brake |
| Front Tires Size | Oil-cooled, self-equalizing, self-adjusting, and hydraulically actuated |
|---|
| Battery Voltage | 12 V | |||
|---|---|---|---|---|
| Electrical System Voltage | 12 V | |||
| Battery Cold Cranking Amps | 1200 CCA | |||
| Alternator Capacity | 120 amp | |||
| Working Lights | Yes | |||
| Driving Lights | No |
| Gearshift Location | Standard: CommandArm™; Optional: Right Hand Console | |||
|---|---|---|---|---|
| Db(A) Rating | 71 dBA | |||
| Seat Suspension | Mechanic / Pneumatic | |||
| Degree of Seat Swivel, Left Hand | 7 degree (angle) | |||
| Degree of Seat Swivel, Right Hand | 15 degree (angle) | |||
| Cab Suspension | Mechanical cab suspension (MCS), Adaptive Hydraulic Cab Suspension (HCS) Plus optional | |||
| Instructional Seat | Suspended/unsuspended | |||
| Primary Display | Cornerpost Display | |||
| Radio | Standard | |||
| Inner Cab Volume | 3.3 m³ | |||
| Cab Glass Area | 6.1 m² |
| Guidance | SF-RTK | |||
|---|---|---|---|---|
| Secondary Display | 10,1 / 12.8 inch Command Center Display | |||
| Receiver | Universal StarFire™ 7500 | |||
| Connectivity | JDLink™ Modem | |||
| Remote Diagnostics | Yes | |||
| ISOBUS Ready | Yes |
| Fuel Tank Capacity | 199/255 L | |||
|---|---|---|---|---|
| Diesel Exhaust Fluid (DEF) Tank Capacity | 13.5 L | |||
| Cooling System Capacity | 22 L | |||
| Transmission - Hydraulic System | 60 (AutoPowr™) / 53 (AutoQuad™) L | |||
| Crankcase Oil Volume | 16 L |
| Wheelbase | 2580 mm | |||
|---|---|---|---|---|
| Base Machine Weight | 6500 kg | |||
| Overall Height | 2865 mm | |||
| Transport Height | 2865 mm | |||
| Overall Width | 1680 mm | |||
| Overall Length | 4542 mm | |||
| Maximum Permissible Weight | 9950 kg |
| Country of Manufacture | Germany | |||
|---|---|---|---|---|
| Date Collected | 2-Nov-2021 |
