TruFinish™ 1235Electric Utility Rake

58 Volt, 7.12 kWh (MAX), Dual Lithium-Ion Battery Pack
Adjustable Raking Speeds for Quality Control
Efficient Top Speed at 13 mph
Choice Between 2WD and 3WD Configurations

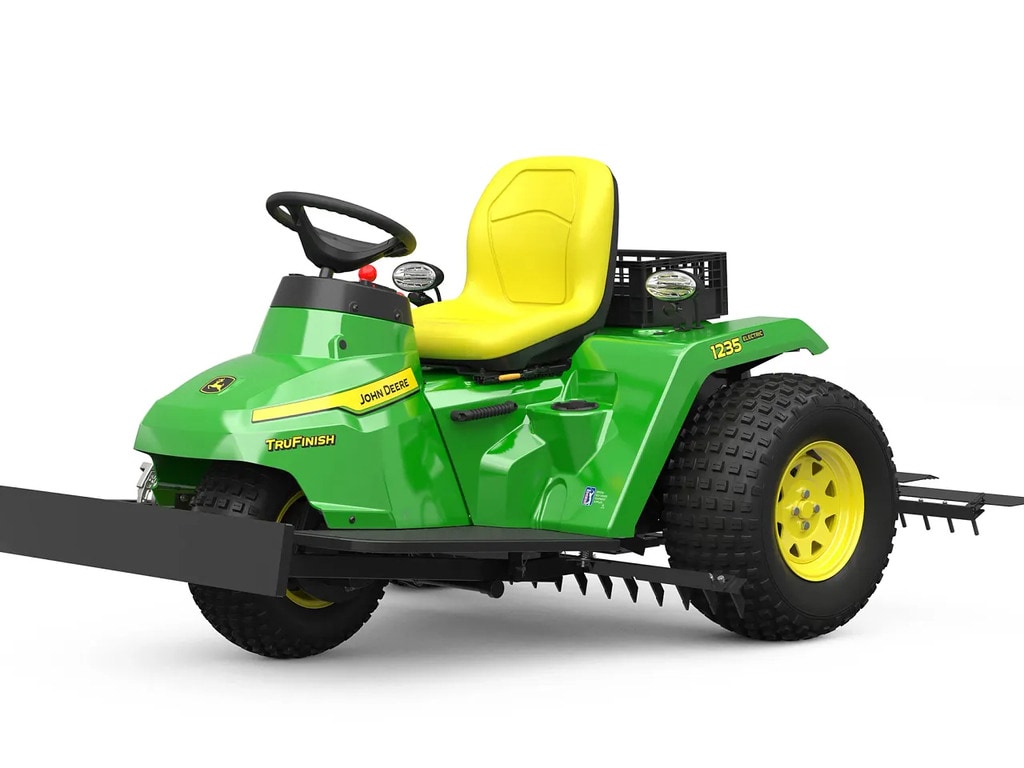

TruFinish™ 1235

Features

TechControl‑Driven Consistency

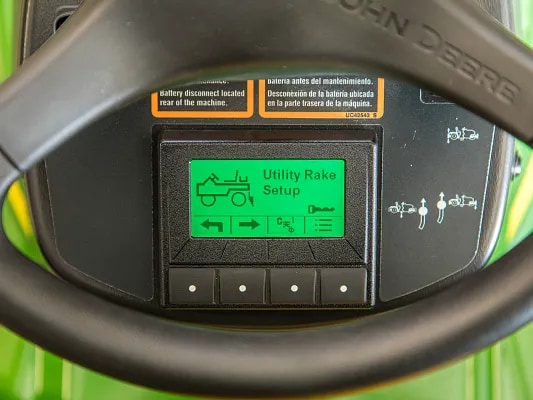

The TechControl display puts job quality and machine oversight in the hands of the supervisor. Passcode‑protected, adjustable settings maintain consistent results while unlocking multiple features.

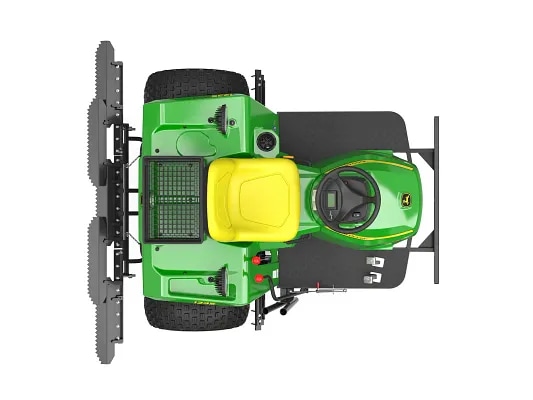

Enhanced Operator Station

Updated styling and a newly redesigned operator station provide better comfort and functionality.

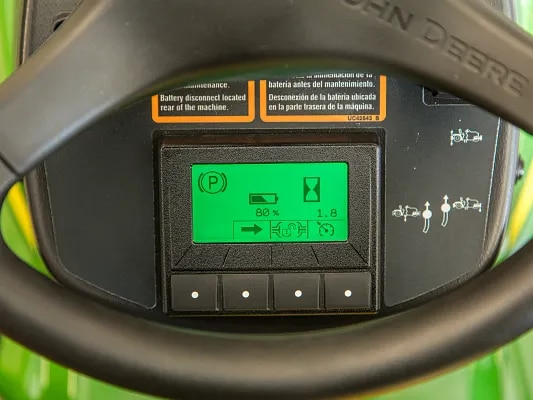

Boosted Traction Capability

Electronic differential lock delivers added traction at the push of a button for moving heavy material.

Show More Show Less

Specs & Compare

Select Different Model

Specs & Compare

John Deere

TruFinish™ 1235

Electric Utility Rake

Export to Excel

1 2

Key Specs

Travel Speed - Forward	0-13 mph
Travel Speed - Reverse	0-5 mph
Ground Clearance At Rake Attachment	9.6 in.
Operator Ear	66.8 dBA

Travel Speed

Travel Speed - Forward	0-13 mph
Travel Speed - Reverse	0-5 mph

Brakes

Type	Mechanical disc, electrically released Regenerative braking during operation Electric park brake switch, parking brakes integrated into electric wheel motors

Tires

Front	22x10-10 2P high-floatation (turf or knobby)
Rear	26x12-12 2P high-floatation (turf or knobby)

Dimensions

Width	60.5 in.
Height	45.0 in.
Length	66.1 in.
Wheelbase	41.5 in.
Ground Clearance At Rake Attachment	9.6 in.
Turning Radius	0.0 in.
Weight (Approximate)	810.0 lb.

Attachments

Rake	Rear mounted, powerlift control
Rake - Width	60.0 in.
Rake - Weight	44.0 lb.
Rake - Blades	Five-section, bunker (serrated) or field (smooth)
Cultivator	Optional, hand control w/ 5-position depth adjustment
Cultivator - Width	64.0 in.
Cultivator - Weight	44.0 lb.
Front Blade	Optional, hand control with lock-up position
Front Blade - Width	40.0 in.
Front Blade - Height	6.0 in.
Front Blade - Weight	46.0 lb.
60-in. Aluminum Front Blade - Width	60.0 in.
60-in. Aluminum Front Blade - Height	10.25 in.
60-in. Aluminum Front Blade - Weight	8.0 lb.
Wide- And Narrow-Interval Scarifier Tines Attachment - Wide Width	63.25 in.
Wide- And Narrow-Interval Scarifier Tines Attachment - Narrow Width	62.0 in.
Wide- And Narrow-Interval Scarifier Tines Attachment - Tines	Optional, hand control w/ 5-position depth adjustment
Mid-Mount 64.5-in. (164.9 mm) Scraper Blade Attachment - Width	64.5 in.
Mid-Mount 64.5-in. (164.9 mm) Scraper Blade Attachment - Height	5.625 in.
Mid-Mount 64.5-in. (164.9 mm) Scraper Blade Attachment - Weight	21.0 lb.
