TruFinish™ 1210Utility Rake

Powerful 13.5 hp, 401 cc Gas Engine Offers Plenty of Pushing Power
Heavy-Duty Air Filter Protects Engine in Harsh Conditions
Torque Converter and Transaxle Design Offer Excellent Traction and Light Turning Radius
High Floatation Tires Provide Maximum Surface Protection

Locate a Dealer

TruFinish™ 1210

Locate a Dealer

Features

Expand All Collapse All

Enhanced Operator Station

Updated styling and a newly redesigned operator station provide better comfort and functionality.

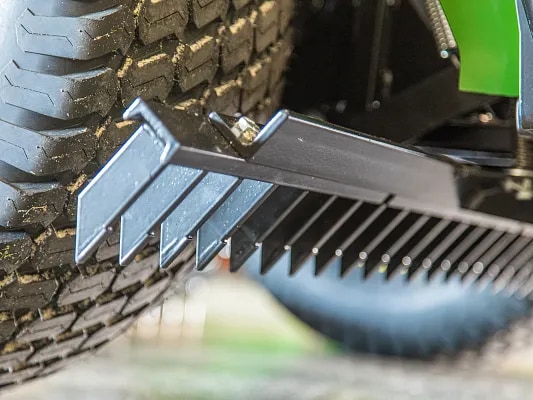

Extra Ground Clearance

Redesigned mid-mount provides additional ground clearance for entering and exiting bunkers.

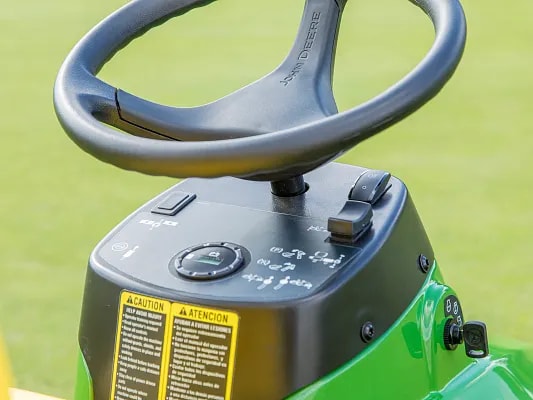

All instrumentation and operator controls are located on the front dash for ease of use and premium visibility. These include hour meter, voltage indicator, ignition switch, optional front light switch, choke control, and implement lift and lower switch.

Show More Show Less

Specs & Compare

Select Different Model

Specs & Compare

John Deere

TruFinish™ 1210

Utility Rake

Export to Excel

1 2

Key Specs

Engine Type	4-cycle, air cooled
Displacement	24.5 cu in.
Horsepower	13.5 hp
Tank Capacity	3.7 U.S. gal.
Transmission Type	Belt-driven torque converter with Kanzaki gear driven transaxle
Travel Speed - Forward	0-12.6 mph
Ground Clearance At Rake Attachment	9.5 in.

Engine

Engine Type	4-cycle, air cooled
Displacement	24.5 cu in.
Horsepower	13.5 hp
Compression Ratio	8.4:1
Lubrication	Full-pressure
Oil Capacity	1.4 U.S. qt
Oil Filter	Standard
Spark Arrester Muffler	Standard
Idle Speed - Low Speed	1175 (+/- 150) rpm
Idle Speed - Fast Speed	3000 (+/- 100) rpm

Electrical System

Type	12.0 V
Type	13.0 amp
Battery	12.0 V
Battery	38.0 amp-hr
Starter	Electric
Ignition	Transistor-type

Fuel System

Tank Capacity	3.7 U.S. gal.
Fuel Pump	Diaphragm-type
Fuel Required	Unleaded gasoline

Transmission

Transmission Type	Belt-driven torque converter with Kanzaki gear driven transaxle
Fluid Capacity	2.11 U.S. qt

Travel Speed

Travel Speed - Forward	0-12.6 mph

Brakes

Type	Mechanically operated disc with parking brake

Tires

Front	22x10-10 2P high-floatation (turf or knobby)
Rear	26x12-12 2P high-floatation (turf or knobby)

Dimensions

Width	56.5 in.
Height	44.8 in.
Length	66.1 in.
Wheelbase	40.2 in.
Ground Clearance At Rake Attachment	9.5 in.
Turning Radius	3.0 in.
Weight (Approximate)	835.0 lb.

Attachments

Rake	Rear mounted, powerlift control
Rake - Width	78.0 in.
Rake - Weight	44.0 lb.
Rake - Blades	Five-section, bunker (serrated) or field (smooth)
Cultivator	Optional, hand control w/ 5-position depth adjustment
Cultivator - Width	64.0 in.
Cultivator - Weight	44.0 lb.
Front Blade	Optional, hand control with lock-up position
Front Blade - Width	40.0 in.
Front Blade - Height	6.0 in.
60-in. Aluminum Front Blade - Width	60.0 in.
60-in. Aluminum Front Blade - Height	10.25 in.
60-in. Aluminum Front Blade - Weight	8.0 lb.
Wide- And Narrow-Interval Scarifier Tines Attachment - Wide Width	63.25 in.
Wide- And Narrow-Interval Scarifier Tines Attachment - Narrow Width	62.0 in.
Wide- And Narrow-Interval Scarifier Tines Attachment - Tines	Optional, hand control w/ 5-position depth adjustment
Mid-Mount 64.5-in. (164.9 mm) Scraper Blade Attachment - Width	64.5 in.
Mid-Mount 64.5-in. (164.9 mm) Scraper Blade Attachment - Height	5.625 in.
Mid-Mount 64.5-in. (164.9 mm) Scraper Blade Attachment - Weight	21.0 lb.
Rear-Mounted 60-in. Field Finisher - Width	60.0 in.
Rear-Mounted 60-in. Field Finisher - Length	14.0 in.
Rear-Mounted 60-in. Field Finisher - Weight	45.0 lb.
