Features

Independent-Link Suspension (ILS™) utilizes industry-leading technology

8R Series Tractor equipped with ILS

The John Deere ILS utilizes industry-leading technology to supply unsurpassed gains to end-user productivity. This innovative design incorporates proven suspension design with mechanical front-wheel drive (MFWD) axle components that use state-of-the-art technology specifically for heavy equipment usage.

The ILS front axle is available on all 8R Series Tractor models.

42-km/h (26-mph) and 50-km/h (31-mph) front axles


Feature	ILS
Hydraulic differential lock	Yes
Limited slip	No
Suspension	Yes
Brakes	Yes (optional on 42 km/h)
Tire ratio/steps allowed	5 or 6
Duals	Yes
Tread spacing singles*	1574 mm - 2184 mm (62 in. - 86 in.)
Tread spacing singles	1524 mm - 2235 mm (60 in. - 88 in.)
Singles with duals	1524 mm - 2235 mm (60 in. - 88 in.)
Duals	2946 mm - 3658 mm (116 in. - 144 in.)
Top speed	42 km/h (26 mph) or 50km/h (31mph) depending on model
Front PTO	Optional

* Based on wheel equipment shipped to some geographic regions.

The ILS system gets more power to the ground because the front tires maintain ground contact pressure. This improves field and transport ride plus increases ballasting flexibility and drastically decreases the tendency to power hop.

ILS cutaway

The ILS axle maintains minimum oil levels in the front differentials to assist in providing overall tractor operating efficiency.

John Deere ILS has three systems:

A mechanical system
A hydraulic system
An electrical system

Mechanical system

The mechanical system is further broken down into the mechanical drive system and mechanical suspension system.

The mechanical drive system includes:

A three-position switch is included on a MFWD clutch.
The MFWD clutch has six clutch discs and separator plates that can transfer as much as 40 percent of the tractor power through to the front ILS axle.
The front differential transfers power from the engine to the individual right and left driveshaft through a ring and pinion.
A hydraulically engaged front differential lock containing eight clutch discs and eight separator plates works in conjunction with the rear differential lock to assist the tractor in tough, wet conditions with increased power transfer to all wheels.
A right and left constant-velocity telescoping driveline provides smooth power transfer to the outboard hubs.
On 8245R, 8270R, 8295R, and 8320R Tractors, the ILS driveshaft speed is 6:1. On 8345R, 8370R, and 8400R Tractors, the ILS driveshaft ratio is 8:1. By using an 8:1 ratio on higher horsepower tractors, power can get to the wheels while minimizing the torque the U-joint experiences.

The mechanical suspension system consists of large cast, upper- and lower-control arms with cast steering knuckles for durability and reliability.

There is a high steering capacity, even with dual wheels – 25 percent increase over model year 2013
High torque in all steering positions provides maximum transfer of power to the wheels under all conditions
Fully independent suspension maintains optimum ground contact at all times

Hydraulic system

The hydraulic system consists of suspension cylinders, a control valve manifold, a front differential lock, and hydraulic accumulators.

There is a high steering capacity through large steering cylinders.
Responsive link arms maintain contact with the ground surface, giving maximum tractive performance under any condition.
Accumulators dampen energy from bumps to produce a smooth ride for maximum operator comfort.

Electrical system

The electrical system contains position sensors, solenoids for the control valves, and a master controller for complete automatic control of the ILS system.

How does it work?

The mechanical, hydraulic, and electrical systems work together to maintain a level and vertically-centered position of the front differential case in relation to the outboard hubs and planetaries, independent of tractor weight or dynamic loading. The system's ability to maintain a vertically centered position provides full suspension travel of 25.4 cm (10 in.). This translates to consistent soil contact for improved power to the ground as well as dampens the energy from bumps that cause a rough ride.

The tractor utilizes electronic and computer controls that monitor tractor functions and axle position. Based on those inputs, the electrical system automatically triggers hydraulic functions to raise, lower, or remain static.

The John Deere ILS uses a short/long A-arm design, which means the upper control arms are shorter than the lower control arms. During wheel movement, the upper control arm moves in a smaller arc than the lower control arm, and the difference in the two arcs creates a change in camber. The change in camber helps keep the inside and outside of the front tires perpendicular to the drive surface, a very important feature when optional front dual wheels are installed. This design provides anti-dive characteristics to naturally reduce the adverse effects of braking and acceleration.

The John Deere ILS front axle has been specifically designed to accommodate additional options, such as front 3-point hitches and front duals. To properly handle these options, large steering cylinders and knuckles provide up to twice the steering capacity of the standard MFWD beam axles so steering performance is maintained. A simple steering stop arrangement offers infinite adjustability for fine-tuning in any row spacing.

Braking system

With higher speeds and expected heavy towed implements and carts, front brakes are optional on 42-km/h (26-mph) ILS-equipped tractors and part of base equipment on 50-km/h (31-mph) ILS-equipped tractors. The braking system is applied proportionally between the front and rear axle brakes to effectively stop the tractor. There are no operator adjustments or requirements to operate the additional braking system.

Tire compatibility

For travel speeds of 50 km/h (31 mph) B-speed-rated tires that provide high-speed capabilities are required.

With the ability to have a six-step drop from rear to front tire, the 8R equipped with an ILS axle is able to have group 49 rear tires with group 43 fronts. This allows for the benefits of group 49 tires while maintain the turning radius allowed by group 43 front tires.

NOTE: The use of group 44 tires for front duals does not allow for some row crop spacings.

Front duals

8R Series Tractor with front duals

Narrow-diameter extension and hub attachment

Front dual tires provide:

Ultimate flotation and compaction management
Increased load-carrying capacity
Easy installation or removal; no need to remove the inner tire
Bolt-on components versus studded flanges for superior flexibility for dual/no dual applications.
Narrow hub extensions to ensure superior crop clearance for row crop applications
A serviceability port has been added to eliminate the need to remove the front dual and hub in order to change the hub oil at the required service interval

Hitch application

In hitch applications, it is important to maintain at least 50 percent of the ballasted front-axle weight (with implement raised) for steering control. Referring to the example below, the maximum ballasted weight of the front axle is 7756 kg (17,100 lb). If the tractor has a hitch-mounted implement, when you weigh the tractor with the hitch and implement fully raised, the front weight must be at least 3878 kg (8550 lb) The front axle capacity is directly proportional to the weight that can be carried on the hitch.

The MFWD axle has a front weight carrying capacity equal to the front tire carrying capacity. For example, in row-crop applications using the popular 480/70R34 (155 load index) front tires, the highest load rating is 3878 kg (8550 lb) per tire. A total of 7756 kg (17,100 lb) at maximum tire pressure. This means (depending on tire pressure and speed) there is as much as 3878 kg (8550 lb) available for support of rear implements in transport.

Maximum load carrying capacity of the axle is determined by the load carrying capacity of the tires and whether the tractor is equipped with singles or duals.

Additional ILS features:

There is no on/off switch for ILS operation since the John Deere advanced electronic management system knows when to disengage ILS automatically. The electronic controller will activate a restricted mode of operation, when any of the following conditions are met:

Both brake pedals are pushed
The 3-point hitch raise/lower switch is activated
The tractor is placed in park
Wheel speed is less than 0.5 km/h (0.3 mph)
Tractor is correcting for an out-of-level condition

Based on the inputs received (speed, suspension displacement, braking and operator input to hitch and/or remote cylinders), the tractor determines when the system should be active or inactive, making operation simple and efficient.

MFWD CommandARM™ controls for ILS

Shortcut keys on the CommandARM enable the operator to engage or disengage MFWD on the go, even under full load without stopping or clutching. The switch can be placed in one of the following positions:

1. AUTO
2. On
3. Off (brake assist)

Mode 1 - AUTO

AUTO light

When this light-emitting diode (LED) light is lit, MFWD is on but automatically disengages when either of the following conditions are met:

Either brake pedal is depressed and held to allow tighter turns
Transporting at speeds above approximately 23.0 km/h (13.8 mph) to reduce tire wear; automatically engages when speed drops below 19.0 km/h (11.4 mph)
When the front wheel turn angle meets an operator-defined point

As with the brake-assist position, when both brakes are depressed, the MFWD automatically engages (if not already on) to provide four-wheel braking.

Automatic MFWD angle adjustment

Mode 2 - MFWD on

MFWD light

When this LED light is lit, MFWD engages continuously.

Mode 3 MFWD off (brake assist)

When no LED lights are lit, the MFWD is off. This is also referred to as the brake-assist position. Even though the MFWD is disengaged, when both brakes are pressed at speeds above 5 km/h (3 mph), the MFWD engages to assist braking the tractor.

Differential lock

CommandARM™ controls with automatic differential lock engaged

CommandARM controls with manual differential lock engaged

The differential lock is another feature of the ILS axle. When the rear differential lock is engaged or disengaged, the front differential lock is also engaged or disengaged. This also includes a driveline shield.

If one wheel begins to slip, the differential lock can be engaged on the go and the axles are hydraulically locked together for maximum traction. There are two ways to engage the differential lock feature.

Manual differential lock - differential lock can be engaged manually using a switch on the floor or by manually depressing a button on the CommandARM console. When brakes are depressed, the differential lock will disengage
Automatic differential lock - when in auto mode, differential lock is engaged when the tractor is driving forward. Differential lock will disengage when front wheel turn angle meets disengage wheel angle setting defined by the operator via the CommandCenter or when either brake pedal is depressed. Differential lock will automatically engage when brakes are released or front wheels are turned straight.

Automatic differential lock angle adjustment

Additional equipment for use with ILS axle

3M front axle spacing kit:
Front axle static weight for the ILS axle shall not exceed 6759 kg (14,900 lb) using the 3M kit
H480 Front Loader
Refer to the material handling section for additional information.

Tire options for 8R Series Tractors

John Deere 8R Series Tractors are utilized in numerous applications that place different demands on tires. As such, multiple tire offerings are available for 8R Series Tractors to accommodate a wide range of grower needs. Tire options provide variability in terms of ground clearance, tread width, and floatation to match different operating conditions.

John Deere sources 8R Series Tractor tires from the following major brands:

Mitas® tires
Firestone® tires
Goodyear® tires
Michelin® tires
Trelleborg® tires

Tire matching (rears and fronts)

8R Series Tractor

Front and rear tires for 8R Series Tractors are sized and combined under different group sizes based on tire rolling circumference. All front tire options for 8R Series Tractors are classified as group 42, 43, or 44, while all rear tires are classified as group 47, 48, or 49. The approximate overall diameters for each group are shown in the following table.

Group	Overall diameter
42	1498 mm (59 in.)
43	1600 mm (63 in.)
44	1676 mm (66 in.)
47	1955 mm (77 in.)
48	2057 mm (81 in.)
49	2172 mm (85.5 in.)

For tractors with mechanical front-wheel drive (MFWD) or Independent-Link Suspension (ILS™) front axles, there typically needs to be five steps (or group size difference) between the front and rear tires to maintain proper tire overspeed between axles. This means the group 42 front tire needs to be matched with group 47 rear tire, and group 43 front tire needs to be matched with group 48 rear tire.

On 1500 MFWD axles, four-step combinations between front and rear tires are also acceptable (determined at the time of ordering the tractor). This means group 44 front tire can be matched with group 48 rear tire, or group 43 front tire can be matched with group 47 rear tire. Six step combinations are possible on tractors equipped with ILS, allowing group 43 front tires to be paired with group 49 rear tires in order to maintain narrower tread functionality with row crop width tire options.

Additionally, tires have a load index rating designed to report the load carrying capability of the tire.

Group 49 rear tires

John Deere 8R Series Tractors are now approved for group 49 rear tires. Group 49 tires have a larger diameter and longer footprint, which results in greater traction in most field conditions compared to smaller group size tires of the same section width and basic design. Group 49 tires also provide a larger air volume than comparable smaller group sizes, which can help control power hop in some conditions.

NOTE:

Front tread spacing for group 49 tires (group 44 fronts) has to be 1930 mm (76 in.) or wider based on tire size. For 762-mm (30-in.) tread spacings, tractors equipped with ILS may be equipped with group 49 rear tires and group 43 front tires.
710/75R42 (group 49) tires are available in singles only (see Configurator for complete offering)
480/95R50 (group 49) tires are available in duals only (see Configurator for complete offering)
Operators will experience a decrease in turning radius with group 49 tires due to the larger-diameter group 44 front tires.

Row width guidelines

Multiple tire options are available for 8R Series Tractors to accommodate multiple applications or row widths. Refer to the minimum recommended row widths for tire options based on the row-width requirements in the following table.

NOTE: Not all tires listed in the chart are available on all John Deere tractors. See your local John Deere dealer for assistance in choosing the proper tires for specific tractor models.

Rear tires		Minimum recommended row width
		508 mm (20 in.)	559 mm (22 in.)	762 mm (30 in.)	813 mm (32 in.)	1016+ mm (40+ in.)
		Rear tire section width
RCI Group	Approximate outside diameter	320 mm (12.6 in.)	380 mm (15.0 in.)	480 mm* (18.9 in.)	520 mm* (20.5 in.)	620 mm (24.4 in.)	710 mm (28.0 in.)	800 mm (31.5 in.)
49	2175 mm (85.5 in.)			480/95R50			710/75R42
48	2057 mm (81 in.)	320/105R54	380/90R54	480/80R50	520/85R46	620/70R46 650/85R38	710/70R42	800/70R38
47	1956 mm (77 in.)	320/90R54	380/90R50	18.4R46 480/80R46	20.8R42 520/85R42	620/70R42 650/75R38	710/70R38

*480 and 520 width tires will accommodate minimum tread setting of 33 in. with 85L oil takeout.

Front tires		Minimum recommended row width
			508 mm (20 in.)	559 mm (22 in.)	762 mm (30 in.)	813 mm (32 in.)	1016+ mm (40+ in.)
		Front tire section width
RCI Group	Approximate outside diameter	290 mm (11.4 in.)	320 mm (12.6 in.)	380 mm (15.0 in.)	420 mm (16.5 in.)	480 mm (18.9 in.)	520 mm (20.5 in.)	620 mm (24.4 in.)
44	1676 mm (66 in.)						540/75R34	620/75R30
43	1600 mm (63 in.)		320/80R42	380/80R38	420/85R34	480/70R34	540/65R34	600/70R30
42	1499 mm (59 in.)		320/85R38	380/85R34	16.9R30 420/90R30	480/70R30	540/65R30	600/65R28

Please reference the operator’s manual for tread spacing requirements.

Hitch clearance and tread spacing

Tread spacing

To prevent draft link interference, the distance (1) between the inside edges of the tires should be:

Category 3N hitch – 1092 mm (43 in.)
Category 3 hitch – 1168 mm (46 in.)
Category 4N hitch – 1168 mm (46 in.)

* Tires 480 mm (19 in.) and larger may not be able to reach all tread settings. Refer to the operator’s manual for detailed tread setting limitations.

Goodyear is a trademark of Goodyear Tire and Rubber Company.

Firestone is a trademark of Bridgestone Americas Tire Operations, LLC.
Michelin is a trademark of MNA, Inc.
Mitas Tires North America is a registered subsidiary of MITAS a.s.

Trelleborg is a trademark of Trelleborg Wheel Systems, Inc.

Take advantage of the Generation 4 CommandCenter™ display, designed for efficiency

The 4100 and 4600 CommandCenter, also known as the Generation 4 CommandCenter, creates the primary user interface for 6R, 7R, 8R/8RT, and 9R/9RT/9RX Tractors. The Generation 4 CommandCenter provides an excellent, user-savvy efficient operating experience.

Producers can also use a variety of implements with the Generation 4 CommandCenter as it is ISOBUS virtual terminal (VT) capable.

Expect machine productivity gains, along with increased operator confidence thanks to a simple, customizable interface. The improved design of the Generation 4 CommandCenter also aids in an optimal operating experience and maximizes uptime.

Some of the easy-to-use benefits of the Generation 4 CommandCenter include:

Easy-to-change fields and guidance lines
Custom-defined views
On-screen help functions
Intelligent warnings
Context-based help
Ability to import, export, and delete files

Layout manager

Layout manager selection page

Layout manager module build

The Generation 4 CommandCenter features a modular-designed layout manager, so an operator can easily create the structure that meets the operator’s demands. From the factory, machines are equipped with default run pages. An unlimited amount of run pages can be added to the Generation 4 CommandCenter based on operator preference or operational needs. Toggling between run pages is as easy as swiping the screen or using the arrow buttons on the top right portion of the title bar.

Users and access

Users and access allow the owner or manager to lock out certain functions to prevent operators from accessing or changing settings. Lock-out functions are managed with a defined four-digit code.

Lock-out features are available for:

Ag Management Solution (AMS) applications
Hitch
Hydraulic
Transmission
Power take-off (PTO)
FieldCruise™ system
Display
Machine monitor

On-screen help and diagnostic text

There are a number of different ways to get meaningful on-screen help when navigating the Generation 4 CommandCenter. Operators can find the help icon on the shortcut bar on the bottom of every page. This icon gives detailed information on everything from tractor operation to application information. Simply select the help icon and navigate to the information section that is needed.

Help icon

Help center main page

Additionally, application-based help is also available in all locations of the CommandCenter. Simply click on the {i} icon available on the title bar and it will lead directly to more information on the application currently being used.

Context-based help icon

Context-based help iTEC™ system main page

Diagnostic text and information is available for better understanding of whether applications are operating as directed.

Machine monitor

Machine monitor page

The machine monitor application provides the user instantaneous readings about the status or condition of the machine. Values shown in the machine monitor vary by application, but typically include parameters like engine speed, coolant temperature, and ground speed. The machine monitor supports run page modules in the layout manager, allowing the user to populate specific machine parameters directly to a run page.

NOTE: The machine monitor application replaces part of the universal performance monitor in previous machines.

File manager

File manager icon upper right

Options available in file manger

File manager is located on the system page in the menu. Users can export, import, or delete single files or all files with the Generation 4 CommandCenter. Files can be imported exported, or deleted with the following filter options:

Export to USB

Screen to export using USB

Choose all data or select client/farm/field

Choose specific guidance tracks or run pages

Choose to export all data types
Select custom export to filter by individual client/farm/field and then export. In addition, users can filter by data type of guidance tracks or run pages.

Delete capabilities

Choose to delete all data types
Select custom delete to filter by individual client/farm/field and then delete. In addition, users can filter by data type of guidance tracks or run pages.

Setup data

Users manage all setup data in John Deere Operations Center when using a 4100 or 4600 CommandCenter. Setup files transfer between displays via USB, for customers using GS3 2630 Display and Generation 4 CommandCenter in their operations.

Import from USB

1. Screen to import using USB

2. Select correct folder for import

3. Select data type

Choose to import folder (like GreenStar™ 3 [GS3] 2630 Display select profile)
Users can select by data type of guidance tracks or run pages.

Users can add one or more guidance lines, clients, farms, or fields without overwriting all of the information on the display.

Users can import a single item from the John Deere Operations Center without having to recreate the entire display database.

This ensures integrity of existing data on the display and improves data transfer time.

4100 CommandCenter 177.8-mm (7-in.) display

Tractors	4100 Processor	4600 Processor
6R (AutoQuad™ transmission/CommandQuad™ transmission)	Standard	Not available
6R (IVT transmission/DirectDrive), 7210R, 7230R	Standard	Option
7250R, 7270R, 7290R, 7310R, 8R/8RT, 9R/9RT/9RX	Not applicable	Standard

Work monitor

Work monitor page

The work monitor application displays the performance information about the task being performed by the machine. The user is shown averages, totals, and productivity of the machine, such as area worked, average working speed, and fuel usage. The values of the work monitor can be reset by the user at any time. Specific values of the work monitor can be configured by the user to be shown on a run page.

NOTE: The work monitor application replaces part of the Universal Performance Monitor in previous machines.

On-screen help can be located on any page where this icon is located

4600 CommandCenter 254-mm (10-in.) display

The 4100 Processor is base equipment and only offered on 6R, 7210R, and 7230R Tractors. It offers:

Compatible with 177.8-mm (7-in.) touchscreen display
One video camera input
One USB input
AutoTrac capable (machine-specific activation sold separately)

Dual display mode

Dual display

The GS3 or GS2 Display can run in dual display mode with the Generation 4 CommandCenter.

Generation 4 CommandCenter may be configured to run with the following John Deere displays connected at the cornerpost:

GS2 1800 Display
GS2 2600 Display
GS3 2630 Display

All precision activations purchased on GS2 or GS3 Display are defaulted to run on the cornerpost display while in dual display mode. Activations cannot be shared between GS2 or GS3 Displays and the Generation 4 CommandCenter. The second display must have its own activations to run AMS applications. RDA can be used on either GS3 2630 Display or Generation 4 CommandCenter in the same session.

Precision ag applications, such as AutoTrac™ assisted steering system, Section Control, and documentation, cannot run on both displays at the same time. When a cornerpost display is installed, precision ag applications will automatically be disabled on Gen 4 CommandCenter.

Tractor applications will always be located on the Gen 4 CommandCenter.

View on screen help to properly set up display when in dual display mode.

Video capability

Tractors with a 4100 CommandCenter are equipped with one video input and 7R, 8R/8RT, 9R/9RT/9RX Tractors with a 4600 CommandCenter have four video inputs. 6R Tractors equipped with a 4600 CommandCenter have two video inputs. The operator has the ability to set a variety of triggers, including reverse, power take-off (PTO), hitch, and selective control valve (SCV) levers to activate the camera. The image will then appear on the CommandCenter display. The camera (video observation system) is available through JD Parts and Ag and Industrial (A and I) Products.

John Deere Generation 4 CommandCenter processors

A Generation 4 CommandCenter is made up of a processor and a display. Two processor options are available for the Generation 4 CommandCenter.

The 4600 Processor is the premium processor, offered as an option on all 6R*, 7210R, and 7230R Tractors and is standard on 7250R, 7270R, 7290R, 7310R, 8R/8RT, and 9R/9RT/9RX Tractors. Available features with the premium processor include:

Compatible with 254-mm (10-in.) touchscreen display
Four video camera inputs
Four USB inputs
AutoTrac capable (machine-specific activation sold separately)
CommandCenter Premium activation – enables Section Control, documentation, AutoTrac and John Deere Wireless Data Transfer (with a JDLink™ Connect subscription)

*Only compatible with infinitely variable transmission (IVT™) and DirectDrive™ transmission

Display options

Generation 4 CommandCenter is available in the following configurations:

177.8-mm (7-in.) display on the 4100 CommandCenter
254-mm (10-in.) display on the 4600 CommandCenter

For growers wanting to maximize their viewing real estate, the 254-mm (10-in.) touchscreen color display is an excellent choice. With the 254-mm (10-in.) display, the title bar and all shortcut keys may be viewed at all times. Operators can monitor more information at once on the 254-mm (10-in.) touchscreen display.

John Deere 4100 CommandCenter

A. Next run page
B. Status center
C. Expand shortcut keys
D. Menu
E. Run page

CommandCenter boundaries

Generation 4 is capable of importing existing boundary information from GS3 2630 or John Deere Operations Center. Gen 4 is also capable of creating boundaries from coverage.

The display uses a streamlined boundary creation process that generates exterior and interior field boundaries from coverage, simplifying the process and reducing steps. Operators can delete interior boundaries without impacting the exterior boundary or headlands. In addition, operators can chose to turn boundaries off for Section Control, while using them for field locator and documentation.

Headland boundaries can also quickly be generated by simply entering a distance or the number of passes from exterior boundary.

John Deere 4600 CommandCenter

A. Next and previous run page
B. Status center
C. Shortcut keys
D. Menu
E. Run page
F. Title bar

Generation 4 CommandCenter and GreenStar displays comparison and compatibility

Generation 4 CommandCenter Display works in dual display mode with GreenStar (GS) 3 2630 Display, GS2 1800 Display, and GS2 2600 Display. For complete feature comparison and dual display compatibility information, please see the display comparison chart and GS3 and AMS display compatibility chart.

Boundary creation from coverage

Headland creation

Boundaries can be imported from the following sources:

John Deere Operations Center
Directly from a GS3 2630 Display or another Gen 4 CommandCenter
Apex™ software or another farm management information system (FMIS) system that exports in GS3 2630 Display format

Rear power take-off (PTO) options

45-mm (1-3/4-in.), 1000-rpm PTO

All 8R and 8RT Series Tractors come standard with a fully independent 45-mm (1-3/4-in.), 1000-rpm PTO. This 20-spline shaft is designed for high-power, heavy PTO loads that require full horsepower above 150 PTO hp.

The 8R Series Wheel Tractors offer additional mechanical and electrical speed-change PTO options to provide the versatility and flexibility needed to satisfy implement demands. An in-cab shiftable, eco version of the 45-mm (1-3/4-in.), 1000-rpm PTO is available, allowing full PTO rotations at decreased engine speeds.

Additionally, a 45-mm (1-3/4-in.), 1000-rpm PTO capable of 35 mm (1-3/8 in.), 540-rpm (6 spline)/1000-rpm (21 spline) can be ordered. To field convert to the 35-mm (1-3/8-in.) 540/1000-rpm PTO, a field kit is required (the required shaft is dependent on the hitch option).

NOTE: 540-rpm PTO options are not compatible with the Category 4 drawbar.

The PTO activation switch is located on the CommandARM™ controls. In addition, PTO engagement modulation is adjustable with settings located in the CommandCenter™ display. The PTO shaft can be slightly rotated or indexed to aid in PTO drive hookups. All PTO options feature internal lubrication with heavy-duty oil-cooled clutch plates. A PTO safety start system and seat-activated PTO warning is standard on all 8R and 8RT Series Tractors.

The following tables show when shaft kits are required for each PTO shaft based on the selected hitch option (drawbar, 3-point hitch, 80-mm ball/piton).

1000/540 PTO
PTO type	Nominal diameter, mm	Number and type of splines	PTO speed (rpm)	Drawbar	3-point hitch	80-mm ball/piton
1	35	6 straight splines	540	RE272736	RE272736	R538037
2	35	21 involute splines	1000	RE272736	RE272736	R537791
3	45	20 involute splines	1000	OK from factory	OK from factory	OK from factory

1000/1000E PTO
PTO type	Nominal diameter, mm	Number and type of splines	PTO speed, rpm	Drawbar	3-point hitch	80-mm ball/piton
1	35	6 straight splines	540	No solution	No solution	No solution
2	35	21 involute splines	1000/1000E	R537790	R537790	R313423
3	45	20 involute splines	1000/1000E	OK from factory	OK from factory	OK from factory

General applications:

Use the 45-mm (1-3/4-in.), 1000-rpm PTO for full-power PTO applications, such as grain carts, rotavators, and silage choppers.
Use the 35-mm (1-3/8-in.), 1000-rpm PTO shaft on implements requiring less than 150 PTO hp, such as manure spreaders and rotary cutters.
Use the 35-mm (1-3/8-in.), 540-rpm PTO shaft on implements requiring less than 75 PTO hp (light loads only), such as auger applications.

NOTE: Proper engine speed for the 1000-rpm PTO shaft is 2000 engine rpm. For the 540-rpm PTO shaft, proper engine speed is 1817 rpm.

Rear PTO options:

45-mm (1-3/4-in.), 1000-rpm (20-spline) PTO
- NOTE: Compatible with 8R and 8RT Series Tractors.
45-mm (1-3/4-in.), 1000-rpm (20 spline), capable of 35-mm (1-3/8-in.), 540-rpm (6-spline)/1000-rpm (21-spline) PTO
- NOTE: Compatible with 8R Wheel Tractors.
  To field convert to 35-mm (1-3/8-in.), 540/1000-rpm PTO, a kit will be required.
  35-mm (1-3/8-in.), 540-rpm PTO portion of this option is not compatible with the Category 4 drawbar.
45-mm (1-3/4-in.), 1000-rpm and 1000E economy rpm PTO, in-cab shiftable
- NOTE: Compatible with 8R Wheel Tractors only. Not compatible with 16-speed PowerShift™ transmission (PST).
  Includes 45-mm (1-3/4-in.), 1000-rpm (20-spline) shaft. See Parts for additional bolt-on shafts.

Hydraulic pump options to meet varying flow requirements

All 8R and 8RT Series Tractors come standard with an 85-cc displacement integrated hydraulic pump. This pump provides 227.1 L/min (60 gpm) of hydraulic flow.

A dual-pump option, featuring 85-cc and 35-cc displacement hydraulic pumps, is available for all 8R wheel models. The dual-pump system provides a hydraulic flow of 321 L/min (85 gpm), ideal for running at lower engine speeds.

SCV flow (approximate)
Engine rpm	Pump flow (85-cm³ pump) L/min (gpm)	High pump flow (85-cm³ pump + 35-cm³ optional pump) L/min (gpm)
800	86 (23)	122 (32)
1500	162 (43)	229 (61)
1700	184 (49)	260 (69)
1900	206 (54)	290 (77)
2100	227 (60)	321 (85)

Operating the tractor at reduced engine rpm contributes to a quieter cab, reduced fuel usage, and maintains the vacuum while turning and raising the planter on end rows. At 1500 erpm with a 321 L/min (85 gpm) system there will be an available flow of 229 L/min (61 gpm). This is an improvement over an available 162 L/min (43-gpm) flow when operating with a 227 L/min (60 gpm) system at 1500 erpm.

The maximum flow through one selective control valve (SCV) with a standard coupler is 132 L/min (35 gpm). A 19.1-mm (3/4-in.) high-flow coupler allows for a maximum flow rate out of one SCV of 153 L/min (40.5 gpm).

The hydraulic system is a closed-center, power-on-demand system using a load-sensing pressure-flow compensated axial piston pump with full-flow charge and flow prioritization for steering and brakes.

The pump outlet pressure available on demand can range from 3000 kPa (435 psi) for track models and 4000 kPa (580 psi) for wheel models at low standby to 20,400 kPa (2958 psi) at high standby.

Hydraulic pump options:

85-cc displacement, 227-L/min (60-gpm) hydraulic pump
- NOTE: Standard on all 8R models.
85-cc and 35-cc dual pump option, 321-L/min (85-gpm)
- NOTE: Compatible with 2014 Final Tier 4 (FT4) and newer 8R Wheel Tractors only.

Lighting packages provide 360 degrees of coverage for maximum productivity

Premium lights

The 7R, 8R, and 8RT Series Tractors feature two lighting package options:

Standard
Premium

The cab lighting pattern provides 330 degrees of coverage while the hood lighting provides the remaining 30 degrees for completely programmable 360-degree, stadium-style lighting. This ensures there are no dead zones or lighting adjustments needed. The lighting configurations are available to match various applications and ensure maximum around-the-clock productivity.

Bulb housings are large, allowing for optimum total lumens and available light. The standard lighting packages use 65-W halogen bulbs, whereas the premium lighting package uses light-emitting diode (LED) lights. In the premium lighting package, these tractors take advantage of the high-performing and efficient LED technology.

The low- and high-beam driving/work lights are adjustable. Please refer to the electrical section in the operator’s manual for complete details on adjusting lights.

7R/8R/8RT lighting

Yellow circles

All lighting packages: 65-W halogen: road low beam

Red circles

Standard: 65-W halogen
Premium: LED

Blue circles

Standard: 65-W halogen; field and road high beams
Premium: LED

Orange circles

Standard: blank
Premium: LED

	Adjustable high-beam driving light/work light
	License plate bracket with light
	Rotary beacon
	Fixed halogen light
	Adjustable low- beam driving light/work light
	Fixed amber light
	Adjustable halogen light
	Adjustable mid-body halogen light
	Fixed high-intensity discharge (HID) light
	Adjustable HID light
	Mid-body hazard, turn, and width indicating light
	Amber turn and brake light

Standard lighting

Standard lighting (8R)

Standard lighting (7R)

Six front grill-mounted lights:

Two 65-W low-beam driving/work lights (mid grill screen)
Two 65-W high-beam driving/work lights (top of grill screen, hood mounted)
Two front corner-facing halogen work lights (top of grill screen, hood mounted)

10 cab roof-mounted lights:

Two rear-facing 65-W floodlights
Four side-facing 65-W floodlights
Four corner-facing amber lights

Other lights:

Two rear fender-mounted floodlights
Two rear turn signal and brake/tail lights (fender mounted)
Two folding-extremity lights

Plus these lights:

Two adjustable front roof 65-W halogen floodlights
Two front belt-line floodlights
Rotary beacon light

Selecting a lighting mode/programmable lighting

Lighting mode selector

Operators can quickly select a lighting mode on the steering console:

Lights, off position
Road lights
Field lights

The CommandCenter™ display

The CommandCenter display allows operators to customize light settings. Operators can select only the lights they need or want for a given application and store these settings. The operator-programmed configurations can then be turned on or off with the push of a button on the CommandARM™ controls.

Programmable field lights 1
Programmable field lights 2
Beacon light
Emergency flashers

NOTE: Road/loader lights are also referred to as high-mounted driving lights for use in front hitch applications that obscure the headlights. See the Attachments section.

The battery power saver feature is also standard. When the engine is off and the outside lights have been left on, this feature is designed to avoid battery run down.

After the lights have been left on for 30 minutes and the key is in the off position, the lights cycle or blink on and off five times as an alert. The lights continue to illuminate for one more minute and then automatically shut off to protect the battery.

Field-installed options

Field-installed options are also available. To find this information, use the Build Your own Configurator application for US/Canada or Build & Price in John Deere Sales Centre for Australia/NZ.

Premium lighting

Eight front grill-mounted lights:

Two 65-W low-beam halogen driving/work lights (mid grill screen)
Two LED high-beam driving/work lights (top of grill screen, hood mounted)
Two front corner-facing LED work lights (top of grill screen, hood mounted)
Two front-facing LED working lights (top of grill screen, hood mounted, inner position on the sides)

12 cab roof-mounted lights:

Four side-facing LED lights
Four corner-facing amber lights
Two rear-facing LED lights
Two adjustable front roof LED lights

Other lights:

Two rear fender-mounted LED lights
Two rear turn signal and brake lights (fender mounted)
Two folding-extremity lights
Two front belt-line LED floodlights
Rotary beacon light

The premium lighting package replaces all previous halogen and HID lights with LED lights. The only lights that are not LED are the low-beam driving lights, they remain halogen. This allows each LED light to work at a lower temperature and no one light works harder than any other. The uniformity in LED coverage allows only one type of light output surrounding the tractor.

The lighting pattern in the premium package provides industry-leading performance in nighttime visibility. LED bulbs provide maximum brightness and a true color output for excellent field definition that is easy on the operator's eyes.

The LED lights provide 40 percent greater coverage width and 10 percent more light coverage in the rear. LED lighting packages use 45 percent less amps than standard halogen lights and have an increased life expectancy over HID lights which leads to lower costs of ownership over the life of the tractor.

NOTE: Lighting packages may vary depending on region.

Programmable exit lighting

Another feature is programmable exit lighting. Exit lighting allows the lights outside the cab to stay on for up to 300 seconds. They can be programmed in increments from 0 to 300 seconds.

Refer to the operator’s manual for complete instructions on programming field, driving, and exit lighting.

Option code	Description
7201	Standard lighting
7206	Premium lighting

ActiveSeat™ seat utilizes electrohydraulic technology with air suspension

ActiveSeat and controls

John Deere’s ActiveSeat utilizes electrohydraulic technology in combination with air suspension, providing the operator with enhanced ride quality over standard air-suspension seats.

Operator movements are monitored in order to reduce vertical movement. An ActiveSeat suspension can isolate the operator from up to 90 percent of vertical movements typically seen in tractor applications.

The system uses a hydraulic cylinder that is connected to a control valve assembly. Electrohydraulic valves located in the control valve assembly automatically react to inputs from two sensors, a position sensor and an accelerometer. Inputs from these two sensors control oil flow from the tractor to the hydraulic cylinder to reduce the vertical movement of the operator.

ActiveSeat left armrest

The John Deere ActiveSeat has many of the same features of the ComfortCommand™ seat with the addition of a ride firmness switch. The ride firmness switch is located on the left-hand armrest and replaces the suspension shock-dampening seat attenuation lever on the front right-hand side of the ComfortCommand seat controls.

The ride firmness switch has three positions: plus, minus, and mid position. The three positions provide three different levels of seat performance:

The plus position provides the greatest degree of ride firmness. This position allows more of the tractor's inputs to be felt by the operator (slightly rougher ride).
The minus position provides the least degree of ride firmness, allowing minimal tractor inputs to reach the operator, resulting in maximum seat performance.
The mid position allows a balance between the plus (+) and minus (-) settings.

The ActiveSeat is also available as a heated leather seat for increased comfort and easier cleaning. For tractor applications where operating speed is not limited by the implement, the ActiveSeat can allow for faster field speeds and increased overall comfort and productivity.

NOTE: The John Deere ActiveSeat is not available on track tractors.

Option code	Description
2061	Premium CommandView III Cab with Active Seat

Standard CommandView™ III cab offers unsurpassed amenities

CommandView III cab

The Standard CommandView III cab offers unsurpassed visibility, operator comfort, control placement, and ride and sound quality.

Features:

ComfortCommand™ seat with air suspension, lumbar support, swivel, fore-aft and lateral attenuation, backrest angle adjustment, adjustable left-hand armrest, and 40-degree right-hand seat swivel
Operator presence system that warns if the operator is out of the seat while operating key functions
Folding instructional seat
CommandARM™ console with integrated controls
4100 or 4600 Generation 4 CommandCenter™display
Behind-the-seat storage
Left-hand storage compartment
Passive noise reduction system
Service ADVISOR™ data port
Tilt/telescoping steering wheel with position memory
Swing-out rear window, opens 30 degrees
Right- and left-outside mirrors (manually adjustable mirror head)
Monitor mounts on right-hand front post and rear cab post
Standard radio package, including AM/FM stereo and weatherband with remote controls, auxiliary input jack, four speakers, and an external antenna
Laminated glass
Air conditioner and heater with automatic temperature controls (ATC)
Two 12-V convenience outlet (cigarette lighter style)
One 12-V 3-pin outlet with adapter (provides switched and unswitched power)
One International Organization for Standardization (ISO) 9-pin connector
Power strip with convenience plug adapter
Hitch control lever lock and selective control lever lock
Two-speed and intermittent front and rear wiper with washer
Front pull-down sunshade
Digital cornerpost display with:
- Fuel level gauge, including low fuel warning
- Temperature gauge
- Diesel exhaust fluid (DEF) gauge, including low DEF warning
- Engine rpm
- Transmission commanded gear or speed
- Vehicle system functions, such as iTEC™ system, that are operating
Inside-mounted rearview mirror
Beverage holders sized to accommodate various containers
Interior left-hand dome light

ComfortCommand seat

ComfortCommand seat improves ride quality and helps to reduce operator fatigue

Features include:

Armrests, lumbar support, and backrest angle are easily adjusted to match operator preference.
Shock absorbers dampen the motion effect of the tractor for an improved ride.
Seat height adjustments are conveniently located on the left armrest.
Fore-aft adjustment is easy to reach located on the left front of the seat.
Swivel adjustment, located on the front of the seat, allows the seat to be swiveled 40 degrees to the right or eight degrees to the left of the center position.
Operator presence switch warns if the operator is out of the seat while operating key functions.
Seat belt retractor.
Centered cab seat, providing excellent over-shoulder visibility.
Adjustable shock absorber permitting ride adjustment from soft to firm to match the operator's desired comfort level.
Removable cushions for easy cleaning.

CommandARM

CommandARM controls

John Deere 7R and 8R Series Tractors feature the CommandARM with integrated Generation 4 CommandCenter display. The control layout of the CommandARM utilizes a clean and efficient design which groups controls by function and builds upon John Deere’s history of intuitive and ergonomic control placement and operation. The CommandARM’s design allows for a 40 degree right seat swivel and adjustable positioning matching the operator’s preference.

Controls located on the CommandARM include:

Engine throttle
FieldCruise™ system
Minimum engine speed – CommandQuad™ transmission, 16-speed PowerShift™ transmission (PST), e23™ transmission
Eco mode – Infinitely Variable Transmission (IVT™)
Foot pedal lock (if equipped)
Transmission control
Hitch/selective control valve (SCV) controls
Rotary encoder hitch control
Power take-off (PTO) controls
Mechanical front-wheel drive (MFWD) on/automatic
Differential lock on/automatic
iTEC sequence switches
AutoTrac™ assisted steering system resume switch (if equipped)
Joystick (if equipped)
Radio
Beacon light on/off
Hazard lights on/off
Field lights 1/2
Heating, ventilation, air conditioning (HVAC) system

Transmission controls

John Deere 7R Series Tractors with CommandQuad transmissions feature a left-hand reverser. 8R Series Tractors equipped with 16-speed PST are equipped with right-hand reverser. 7R Series Tractors equipped with e23 PST offer a left- or right-hand reverser. 7R or 8R Series Tractors equipped with AutoPowr™/IVT transmissions are offered with either a left-hand or a right-hand reverser.

The transmission control lever is placed on the CommandARM’s left side closest to the operator for convenient setting and adjustment.

Left-hand CommandQuad/e23 reverser

Right-hand IVT and PST reverser

Hitch controls

Optional crossgate joystick

Throttle

The throttle design incorporates buttons which control FieldCruise speed, foot pedal mode (if equipped), and transmission eco settings.

16-speed PST right-hand reverser

Hydraulic and hitch controls

Hydraulic and hitch controls utilize fingertip paddle pots for raise/lower and extend/retract functions. An optional crossgate joystick replaces fingertip paddle pots for control of SCVs and allows for programmable hydraulic functionality according to operator preference. Rear hitch position can also be controlled with the encoder wheel located on the right side of the CommandARM. The encoder wheel allows for finite positioning of the rear 3-point hitch.

Three buttons near the encoder are for hitch set, lock, and return to height. Adjustment knobs for the 3-point hitch are located under the cover for the CommandARM’s storage compartment and allow for adjustment of the rate of drop, hitch height limit, and depth control.

Fingertip paddle pots

Encoder wheel

Throttle

Foot throttle

Tractor function controls

Located just to the right of the throttle is the Auto-Trac activation button and four sequence controls for iTEC functions. Behind the iTEC sequence controls, there are buttons which control the activation and deactivation of MFWD and differential lock. Differential lock can also be activated by the foot switch on the cab floor.

AutoTrac resume and iTEC strip

Controls for radio, lights, rotary beacon (if equipped), hazard flashers, and HVAC system are located to the center-right on the CommandARM, along with PTO for both front (if equipped) and rear PTO.

Radio, HVAC, hazard flashers, and PTO controls

Seat swivel

The design of the CommandARM allows for up to 40 degrees of right-hand seat swivel.

Seat swivel

CommandCenter

Generation 4 CommandCenter

The Generation 4 CommandCenters feature fast adjustment of tractor functions and controls and are integrated into the CommandARM to create a seamless control center. The 4100 CommandCenter features a 178-mm (7-in.) touchscreen display and is standard equipment on 7210R and 7230R models, while the 4600 CommandCenter features a 154-mm (10-in.) touchscreen and is standard equipment on 7250R – 7310R models, as well as all 8R and 8RT models.

The following functions can be adjusted using the CommandCenter display:

Hydraulic settings
Hitch settings
Transmission settings
FieldCruise
iTEC programming functions
Radio
Lights

ActiveCommand steering (ACS™) provides a robust and full-encompassing steering system

ACS overview

8R in transport

With ACS, John Deere has designed one of the most robust and full-encompassing steering system in the industry. Whether in the field or on the road, ACS reduces steering effort, which can result in reduced operator fatigue and can improve operator comfort.

There are four key features of the ACS system:

Dynamic road wheel offset:

A gyroscope senses tractor yaw and can automatically make small steering adjustments to provide unprecedented line-holding abilities. Drive down a bumpy road and experience how ACS makes it easier to keep the tractor straight, even over rough terrain. ACS delivers the ultimate in comfort.
ACS works to prevent over-steering when a sudden obstacle causes the operator to make a quick steering reaction.

Variable ratio steering:

Approximately 3.5 turns lock-to-lock at in-field speeds for quick headland turns.
Approximately 5 turns lock-to-lock at transport speeds.

Elimination of steering slop and hand wheel drift:

Steering wheel drift and slop are eliminated with the ACS electronic control system.

Variable effort steering:

Steering wheel resistance automatically changes with ground speed to deliver light steering effort at slower speeds for less effort during headland turns, and higher steering wheel torque at transport speeds for better comfort.

A fail operational system

The ACS system is fail operational, which means steering is still functional in the event of any single-point failure. John Deere has gone to great lengths to help ensure the operator has the ability to steer the tractor if something goes wrong in the steering system.

For example, if the primary controller fails, a second controller takes over. If power from the alternator fails, the battery resumes control. If the engine quits running and is unable to supply hydraulic oil to the system, an electric-driven backup pump is used to supply the oil. There is a backup for ACS components.

ACS components

The ACS system consists of several key components:

Gyroscope: this is used to measure the yaw rate (turn rate) of the tractor during transport speeds.
Road-wheel angle sensors: these sensors simply measure the steer angle of the tractor.
Power supply module: this module distributes the power of the battery and alternator throughout the ACS system.
Hand-wheel angle sensors and tactile feedback unit: this includes the steering wheel position sensors and a brake which can increase or decrease resistance dependent on speed. Lighter feedback is desired during normal field use, and slightly heavier feedback is desired during transport and while the tractor is cornering at high speeds.
Controllers: two controllers are located in the back of the tractor and are the brains of the system.
Control valves: also known as steering valves, control valves are used to steer the tractor.
Electric-drive backup pump: this pump supplies oil to the steering system, brakes, and park (for towing) brake if there is no longer a sufficient oil supply to the steering and brakes.

Value of ACS

Improves line holding when driving at transport speeds
Fewer turns lock-to-lock: 3.5 turns lock-to-lock in the field for quicker headland turns and 5 turns lock-to-lock at transport speeds
Eliminates hand wheel backlash and drift
Reduces steering effort results in reduced operator fatigue
Smaller hand-wheel diameter for improved operator comfort and visibility
Maintains operator feel and touch-points of traditional steering column system
Fully integrates with AutoTrac™ guidance assisted steering stems
Compatible with suspended and non-suspended front axles
Compatible with wide and narrow section width tires

Show More Show Less

Specifications

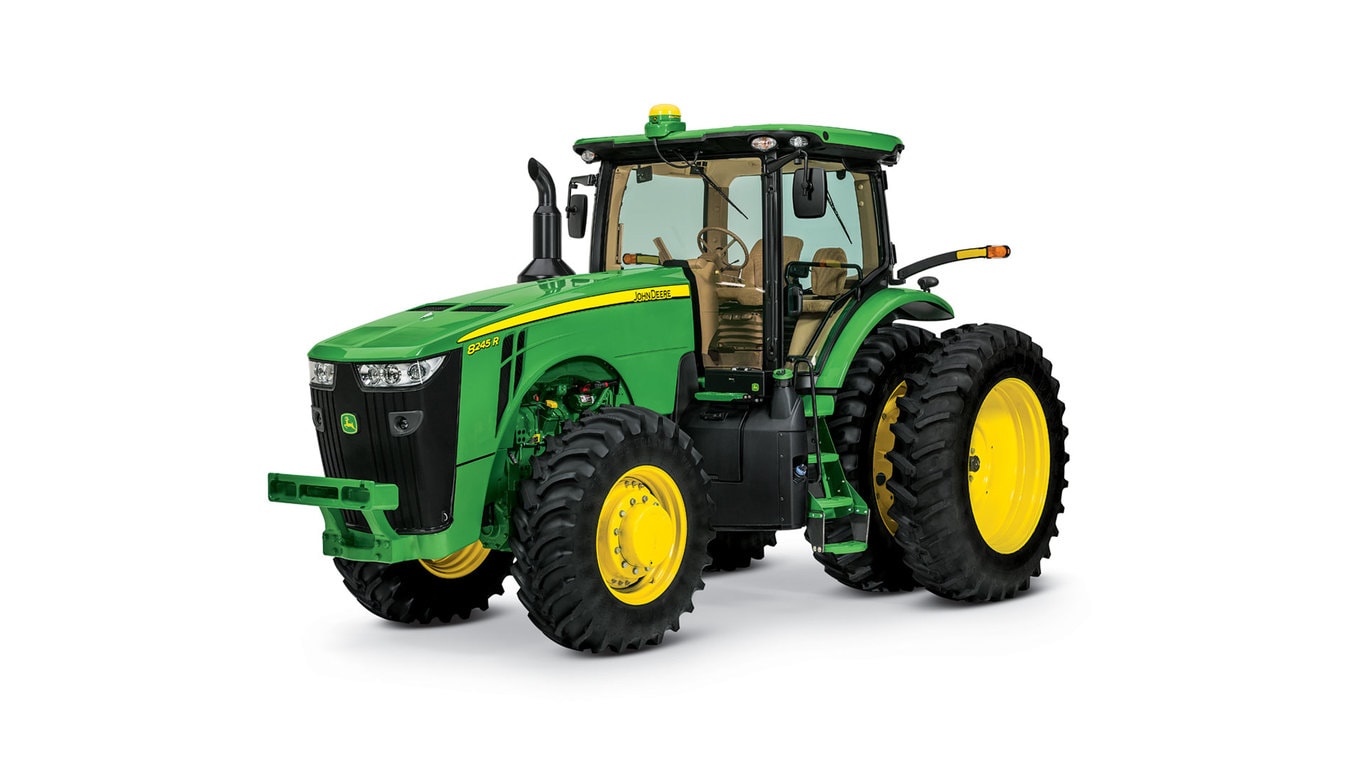

John Deere

8245R

Tractor

Nebraska Test number	TBD Nebraska Test

Manufacturer

John Deere

Engine family

9.0L: EJDXL09.0301

Aspiration

Dual turbochargers, variable geometry turbo with fixed geometry turbo in series

Cylinders/Displacement, cu. in. (L)

6 cylinders/9.0 L
549 cu in.

Cylinder Liners

Wet

Fuel tank capacity, US Gal. (L) (Open; Cab)

Standard
With G47/48 tires: 645 L
170.4 U.S. gal.
With G49 tires: 686 L
181.2 U.S. gal.

Underhood muffler

Advertised PTO hp (kW) @ Rated rpm

At @ 2100 per SAE: 149 PTO hp
200 hp

Official PTO hp (kW) @ Rated rpm

Advertised Engine hp (kW) @ Rated speed

At 2100 per 97/68EC PS: 180 kW
245 hp

Max Unballast Drwbr hp (kW) @ Eng rpm

Maximum Torque (PTO) @ rpm, lb-ft (Nm)

Max Torque Rise (80% rtd spd) @ Eng rpm

Maximum Torque Rise % (PTO) @ Eng rpm

PTO @ Rated Eng rpm

Standard PTO Speed @ Eng speed

Maximum PTO Power @ Eng rpm

Maximum Engine Power @ Eng rpm

Max Unballasted Drawbar Power @ Eng rpm

75% Load, Full Engine rpm (Unballasted)

75% Load @ Reduced rpm (Unballasted)

Std. Transmission; Forward/Reverse

16-speed PowerShift; 16/5

Opt. Transmission; Forward/Reverse

e23; 23/11 (42 or 50) km/h
IVT (42 or 50) km/h

Reverser

Left-hand or Right-hand (PowerShift RH only)

On-the-Go Shifting (Yes/No/Partial)

Yes

Clutch; Wet/Dry

Wet

Creeper

IVT

Standard

45 mm (1.75 in.), 20 spline, 1000 rpm

Optional

45 mm (1.75 in.), 20 spline, 1000 rpm and 1000E economy rpm, in-cab shiftable
45 mm (1.75 in.), 20 spline, 1000 rpm, capable of 35 mm (1.375 in.), 6/21 spline, 540/1000 rpm

PTO Speeds @ Engine rpm

16-speed PowerShift: 1000 PTO rpm @ 2003 engine rpm, 1000 ECO PTO rpm @ 1596 engine rpm, and 540 PTO rpm @ 1817 engine rpm
IVT: 1000 PTO rpm @ 2000 engine rpm, 1000 ECO PTO @ 1594 engine rpm, and 540 PTO rpm @ 1814 engine rpm
e23: 1000 PTO rpm @ 1995 engine rpm, 1000 ECO PTO @ 1590 engine rpm, and 540 PTO rpm @ 1810 engine rpm

PTO Actuation

Electrohydraulic

Type

Closed-center, pressure/flow compensated

Pump Rated Output, GPM (L/min.)

Standard
227.1 L/min
60 gpmOptional
321 L/min
85 gpm

Rated Flow @ One SCV, GPM (L/min.)

Rear: 0.5 in.
SCV: 132 L/min
35 gpm
Rear: 0.75 in.
SCV: 153 L/min
40.5 gpm
Front SCV: 96 L/min
25 gpm

Max Output @ SCV Couplers, GPM (L/min.)

Maximum Operating Pressure, psi (kPa)

20,400 (+ or - 300) kPa
2958 psi

Maximum Hydraulic Power, hp (kW)

Hitch Draft Control Load Sense Type

Electronic

Remote Control Valves Available

Standard: four
Optional: five or six
2 Front SCV option

Hitch Category (SAE Designation)

Standard: Cat 3/3N
Optional: Cat 4N/3

Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt.

Standard
Cat 3/3N: 6350 kg
14,000 lbOptional
Cat 3/3N: 8391 kg
18,500 lb
Cat 4N/3: 9072 kg
20,000 lb

Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (SAE)

Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (ASAE)

Sensing type

Electrohydraulic

Joystick SCV control

Electrohydraulic optional

Type

Inboard planetary

Differential controls

Electrohydraulic

Availability

Front
YesFront & Rear
Yes
Yes

Engage On-the-Go Rear Differential Lock

Yes

Axle Type

Bar axle, rack and pinion

Brakes, Type and Control

Hydraulic wet disc

Rollover Protective Structure, OOS

Gearshift Location - Console/Floor
CommandARM

Cab

Doors
LHPlatform - Flat/Straddle
FlatSeat Suspension System
Standard: air
Optional: active seat
Optional: Cab suspension with air seat

Wheelbase, in. (mm)

Front Tread Range, in. (mm)

Rear Tread Range, in. (mm)

Minimum Rear Tread Setting, in. (mm)

Front Axle Clearance, in. (mm)

Turning Radius w/Brakes, ft (m)

Turning Radius w/o Brakes, ft (m)

Unballasted Operating Weight, lb (kg)

Approx. Ship Wgt, lb (kg) Open; Cab

MFWD/PST with 625-kg (1378-lb) inner weights, front weight support, Cat3 hitch with QC, 113.6 L (30 gal.) fuel, 480/80R46 rear duals, 420/90R30 fronts:
12,680 kg; 27,953 lb
ILS/IVT with 625-kg (1378-lb) inner weights,front weight support, Cat4 hitch with QC, 113.6 L (30 gal.) fuel, 480/80R50 rear duals, 420/85R34 front duals:
15,009 kg; 33,091 lb

Wheelbase, in. (mm)

MFWD: 3080 mm
121.3 in.
ILS: 3050 mm
120.1 in.

Front Tread Range, in. (mm)

1300 MFWD: 1524-2235 mm
60-88 in.
1500 MFWD/ILS: 1524-3657 mm
60-144 in.

Front Axle Clearance, in. (mm)

MFWD: 686 mm
27 in.
ILS: 590 mm
23.2 in.

Turning Radius w/Brakes, ft (m)

Turning Radius w/o Brakes, ft (m)

Limited Slip Differential

Limited slip or hydraulic lock differential available

Unballasted Operating Weight, lb (kg)

Approx. Ship Wgt, lb (kg) Open; Cab

MFWD/PST with: Inner weights: 625 kg
1378 lb
front weight support/Cat3 hitch with QC/Fuel 113.6 L
30 gal.
480/80R46 duals/420/90R30 fronts
12,498 kg
27,553 lb

Wheelbase, in. (mm)

Wheel Tread, Min. to Max. in. (mm)

Turning Radius w/o Brakes, ft (m)

Nebraska Test Unballasted w/Duals, lb (kg)

Unballasted Weight, lb (kg)

2WD

MFWD

Front
420/90R30Rear
480/80R46

4WD

Track widths

Country of Manufacture

Waterloo, IA USA

Ballasting Restrictions, lb (kg)

Refer to operator's manual

*Notes

Offers and Discounts

8245RTractor

SHARE

Meet the 8R/8RT Series Tractor, it leaves no room for compromise. It works hard, performs strong and runs lean.

Win the Race.

RUN IN COMFORT

RUN WITH A PARTNER

Features

42-km/h (26-mph) and 50-km/h (31-mph) front axles

Front duals

MFWD CommandARM™ controls for ILS

Mode 1 - AUTO

Mode 2 - MFWD on

Differential lock

Tire matching (rears and fronts)

Group 49 rear tires

Row width guidelines

Hitch clearance and tread spacing

Layout manager

Machine monitor

File manager

Export to USB

Delete capabilities

Setup data

Import from USB

Work monitor

Dual display mode

Video capability

Display options

CommandCenter boundaries

Generation 4 CommandCenter and GreenStar displays comparison and compatibility

Standard lighting

Selecting a lighting mode/programmable lighting

Field-installed options

Premium lighting

Programmable exit lighting

ComfortCommand seat

CommandARM

Transmission controls

Hydraulic and hitch controls

CommandCenter

ACS overview

A fail operational system

Value of ACS

Specifications

Official Test

Engine

Performance

Fuel Use, U.S. gal./hr & hp hr/gal. at:

Transmission

Power Take-Off (PTO)

Hydraulics

Final Drive

Operator Station

2WD Dimensions

MFWD Dimensions

4WD Dimensions

Standard Tires

Miscellaneous

Offers and Discounts

Shop and Buy

Maintenance and Support
