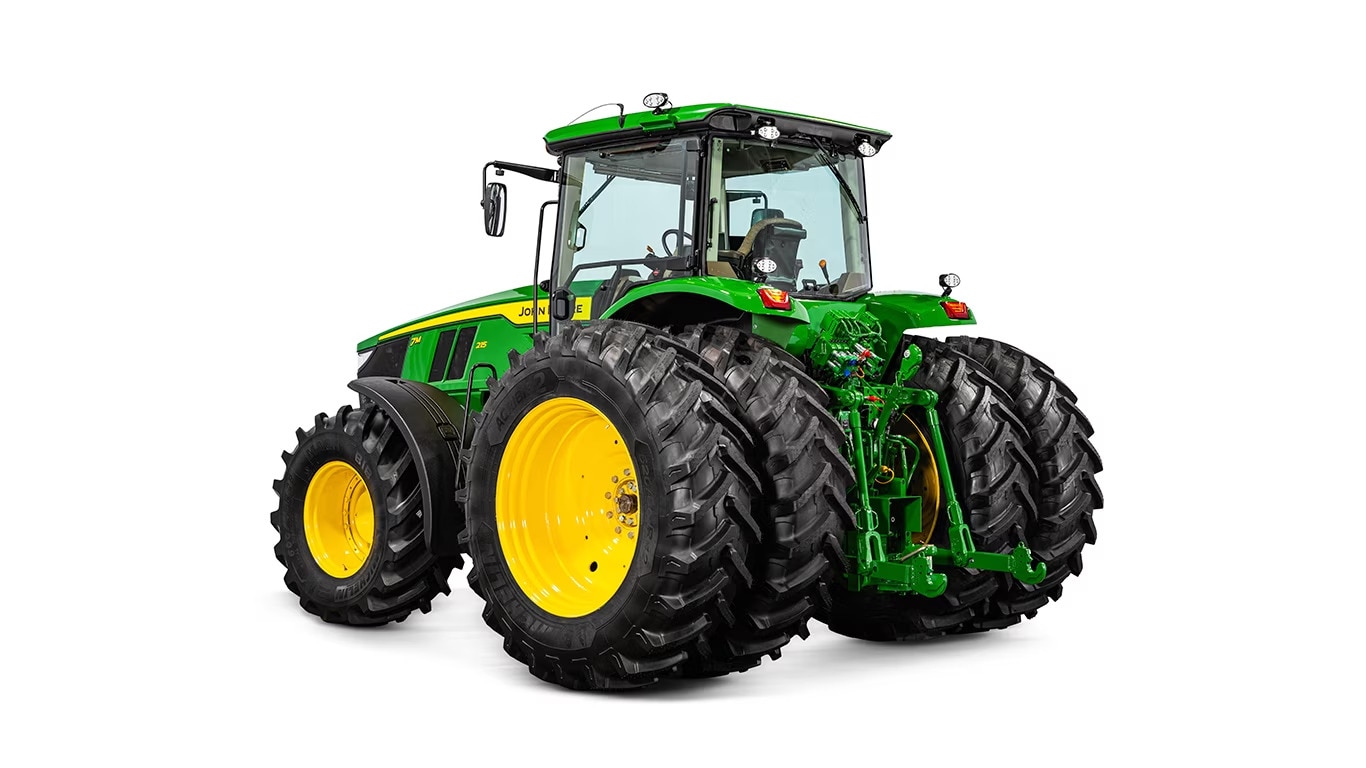

7M 215215hp Tractor

Engine efficiency, up to 3% less fuel consumption.
AutoQuad™ or CommandQuad™ transmission for even more productivity.
Technological and connected to increase field performance (SF7000 Antenna and G5 Display);
Serviceability and convenience

7M 215

Robust and confident to serve customers in the grain and sugar cane segments.

The new 7M Series Tractors bring important updates related to productivity, serviceability, and cost reduction in operation.
A new visual identity, CommandQuad™ transmission, LED light packages, and ease of operation are features of the new family.
The 7M line is versatile, technological, and robust to ensure high performance in the field.

Features

Expand All Collapse All

John Deere PowerTech™ Plus MAR-1 6068 engine means more efficiency and productivity

7M Engine Package

John Deere manufactures its own engines to ensure that the performance delivered is ideal for agricultural applications.

Its high torque design and an engine power curve to react quickly to field demands result in less gear shifting and maximum productivity at the end of the day.

Engines are also compliant with emissions regulations from countries that require StageIIIa (MAR-1). The solution applied by John Deere is the best in fluid efficiency as it does not require any diesel exhaust fluid (DEF), such as Arla.

Benefits

7M engines reach full power at 1,900 rpm, providing 10% more power compared to power delivery at rated speed.
The torque increase ranges from 33% to 36% at 1,550 rpm, depending on the model, the best in the market at this power level, providing a drag reaction.
Redesigned cooling package that provides up to 3 percent less fuel consumption compared to its 7J predecessor.

	7M 200	7M 215	7M 230
Engine	John Deere PowerTech™ Plus	John Deere PowerTech™ Plus	John Deere PowerTech™ Plus
Rated engine speed	2100 rpm	2100 rpm	2100 rpm
Engine power at rated speed	200 hp	215 hp	230 hp
Maximum engine power at 1,900 rpm	214,9 hp	230,9 hp	247,5 hp
Emissions compliance	PROCONVE MAR-I	PROCONVE MAR-I	PROCONVE MAR-I
Type	In-line diesel engine	In-line diesel engine	In-line diesel engine
Input	Turbocharger with air cooler	Turbocharger with air cooler	Turbocharger with air cooler
Quantity of cylinders	Six	Six	Six
Engine size	6.8 L	6.8 L	6.8 L
Torque increase	36 percent	36 percent	33 percent
Maximum torque	904 Nm	971 Nm	1.025 Nm
Engine speed at maximum torque	1550 rpm	1550 rpm	1,550 rpm

Exceptional power and efficiency with 7M transmission options

The 7M transmission options combine superior ease of operation and exceptional efficiency to supplement the power and torque of your John Deere tractor.

AutoQuad™ transmission

AutoQuad™

The AutoQuad™ transmission offers a variety of functions with the convenience of automatic gear shifting. This transmission contains a 16F/16R speed setting with four PowerShift speeds in each of its four ranges, capable of reaching up to 30 km/h (15 mph).

Benefits

The range lever is ergonomically positioned and is ideal for a long workday.
The stationary brake is integrated into the range lever.
Contains AutoQuad automatic PowerShift gearshift on the range lever.
Declutch button on range lever for easy range shifting.
Two gear shift buttons to raise or lower gears like PowerShift™.
Gear shift located next to the range lever for PowerShift™ shifting as an alternate gear shift.

CommandQuad™ Plus transmission

CommandQuad™

Looking for an additional level of performance for your day-to-day work? The CommandQuad Plus adds value to the AutoQuad transmission with speed setting adjustment and a transport mode for automatic range shifting. This transmission contains a 20F/20R speed setting with four speeds and five ranges, capable of reaching up to 40 km/h (25 mph). You will enjoy the automated capabilities of the CommandQuad™ Plus transmission.

Experience comfort with the updated 7M cab

7M cab with CommandARM™

G5 integrated display <sup>Plus</sup> and corner speaker monitor

G5 Integrated Display ^Plus and corner column monitor

There is no doubt that you spend a lot of time in the cab. Make quality time with the 7M tractor redesigned cab. Based on ergonomic principles best practices and two different cab packages to customize the way you work, you will enjoy a more productive, comfortable, and efficient experience. All 7M tractors will come standard with a digital cornerpost display. This easy-to-read digital display provides access to all critical machine data and settings in one place. In addition, premium options have been made available for you to customize your 7M to fit any operation, including:

Commands

CommandARM™ console with integrated hitch and hydraulic controls
Air conditioner and heater controls
Radio and volume controls
Hitch control lever lock and selective control lever lock
Tilt/telescoping steering wheel
AutoTrac Resume Button
iTEC™ engagement buttons

Monitors

G5^Plus Universal and CommandCenter™ 32.5cm Monitor
Digital Corner Post Display with:

Fuel level indicator, including low fuel warning
Temperature indicator
Engine rpm
Gear or wheel speed commanded by transmission
Vehicle system functions, such as iTEC™ system, that are functioning

Display brackets on right front post

Sound

Cab noise reduction by design
Includes radio, AM/FM, and Bluetooth® wireless with voice control, four speakers.

Windows

Rear hinged glass with 30 degree opening
Laminated glass
Front and rear two-speed wiper and intermittent wiper with washer
Front sunshade

Bluetooth® is a trademark of Bluetooth SIG, Inc.

7M Visibility packages allow you to work confidently from dawn to dusk

Front view of the complete 7M LED (light-emitting diode) lighting package

Full 360 Degree Coverage LED Package

Cleaner and rear view of the complete 7M LED lighting package

Front sun visor, wiper and interior cab mirror

Visibility goes far beyond lighting. It means mirrors where you need them, shade for the sunlight in late fall and early spring, cleaners to help keep all the glass clean. The 7M Series Tractors offer a complete visibility package, with 360-degree LED lighting, so you and your operators can work with confidence in all conditions.

Improve performance with Triple-Link Suspension (TLS™)

Model 7M with TLS

7M Series Tractors can be configured with the 1150 Series TLS front axle system. This system includes hydro-pneumatic cylinders and nitrogen accumulators that significantly increase the tractor’s pulling capacity by maintaining efficient tire-to-ground contact. This is a proven system in terms of durability, reliability, and performance. Up to 8 percent better traction compared to tractors equipped with a standard MFWD front axle.

Benefits

Increased productivity through traction improvements
Better ride quality
Easier operation and ride quality

Maximum ha/a yield improvements of 8 percent were measured during field tests.

Get better planting performance with air supply and pneumatic downforce (PDF)

Air supply connector

Air supply valve and reservoir

The 7M Series tractors now have the air supply system developed to provide air pressure to planters equipped with PDF. The system was developed to improve energy management of the entire planting system, helping to reduce fuel consumption, a major component of the cost of production. With the air supply, the difference in fuel consumption can be up to 1.5 L/h less than an air supply installed on the planter.

The air supply provides a lower periodic maintenance cost for the customer compared to the air supply system currently installed on the planter due to the following:

The air compressor installed on the tractor uses the air filtration system from the engine.
The air compressor installed on the tractor uses engine oil for its lubrication system.

The air supply system on the tractor provides a lower cost of maintenance than the air supply system on the planter. This gives the customer a lower total acquisition cost of the air supply system for the PDF.
The air supply system on the tractor allows better energy management and results in up to 1.5 L/h lower fuel consumption.
The air gun adds more serviceability to the air brake system package, so the operator has external air pressure for cleaning and tire inflation, for example.

The best sugar cane package for your operation

Plug for trailer air brake accessories

General purpose air gun

Spherical drawbar pin

Pneumatic trailer brake (handbrake)

The 7M Series Tractors feature a complete configuration for sugar cane applications in cane haulage, seeding, and terrain preparation. When choosing the sugar cane packages, you will configure the tractor with the appropriate 3-point hitch, drawbar ball pin, John Deere 3-m (10.8-ft) front axle, air trailer brake, hand trailer brake, appropriate tires, external air gun, and the correct transmission option for your operation.

Air trailer brake, for trailer draft applications, is an option that can be configured from the factory. This braking system is connected to the tractor’s braking system and is activated whenever the tractor’s brake pedal is pressed.
The hand brake lever to engage the air trailer brake was developed so the operator has a second brake enable system to improve performance and comfort during operation.
The air trailer brake system contains an air compressor, air reservoir, hand brake lever, air lines, hoses, and connectors.
Along with the trailer brake option, an air connector was developed with a hose, blower gun, and hose bracket.
Efficient foot pedal and trailer brake system for optimum performance and safe transport.
The hand braking system improves overall performance and allows the operator to have a second braking device for brake engagement for increased comfort.
The air gun adds more serviceability to the air brake system package, so the operator has external air pressure for cleaning and tire inflation, for example.

Show More Show Less

Specs & Compare

Select Different Model

Specs & Compare

John Deere

7M 215

215hp Tractor

Export to Excel

1 2

Key Specifications

Engine Description	John Deere PowerTech™
Engine Displacement	6.8 L
Rated Engine Power	158.1 kW
Maximum Engine Power	169.8 kW 230.9 hp
Rated PTO Power (HP SAE)	132 kW 179 hp
Transmission Type	John Deere AutoQuad™ 16F/16R - 30 km/h 18.6 mph John Deere CommandQuad™ 20F/20R with Efficiency Manager - 40 km/h 24.9 mph
Hydraulic Pump Rated Output	174 L/min 46 gpm
Rear Hitch Category (SAE Designation)	3-Point Hitch Cat. 3/3N - 4600 kgf at 610 mm - With Hook and Electronic Sensing Control 3-Point Hitch Cat. 3/3N - 6350 kgf at 610 mm - With Hook and Electronic Sensing Control
Base Machine Weight	10 410 kg 22 950 lb

Engine Specifications

Description	John Deere PowerTech E 6068HBM08 - PROCONVE MAR-I Emission Level
Engine Type	Diesel, In-Line, 6-Cylinder, Wet Sleeve Cylinder Liners with Four Valves in Cylinder Head
Engine Family	6068HBM08
Rated Speed	2100 rpm
Aspiration	Single Wastegate Turbocharger with Air-to-Air Aftercooling and Cooled Exhaust Gas Recirculation (EGR)
Emission Level	14/10000 PROCONVE MAR-I
Displacement	6.8 L

Engine Performance

Rated Power	158.1 kW 215 hp
Rated PTO Power (HP SAE)	135 kW 184 hp
Power Boost	7.5 percent
Maximum Engine Power	169.8 kW 230.9 hp
Maximum engine pair	At 1550 r. p. m. : 904 Nm 667 lb-ft
PTO Torque Increase	36 percent

Transmission

Type	John Deere AutoQuad 16F/16R - 30 km/h 18.6 mph John Deere CommandQuad 20F/20R con Efficiency Manager - 40 km/h 24.9 mph

Hydraulic System

Type	Closed center, with flow and pressure compensated
Pump Rated Output	174 L/min 46 gpm
Available flow in a single rear SCV	1.3-cm (3-in.) couplers: 132-L/min (44.5-gpm) 35 gpm
Number of Rear Selective Control Valves (SCV)	Standard: Four 1.3-cm (3-in.) couplers Optional: Four to six 1.3-cm (3-in.) couplers factory installed
SCV Control	Standard: Mechanical Optional - Electronic

Rear Hitch

Hitch Category (SAE designation)	Base: Category 3/3N, 4600 kg 10 140 lb Optional: Category 3/3N, 6350 kg 14,000 lb
Maximum lift capacity behind lift points	Category 3/3N: 6350 kg14 000 lb
Detection Type	Electrohydraulic system with load control

Drawbar

Drawbar Category	Category 3
Maximum Vertical Load	Base: Category 3 with heavy-duty drawbar support 4536 kg 10,000 lb

Rear Power Take-Off (PTO)

Type	35 mm PTO, 540/1000 rpm, (21 splines) - PTO Cat. 2
PTO Drive	Electrohydraulic

Rear Axle

Type	Rack & Pinion 100mm diameter long axle - 2808mm length
Final Drive Type	Reduction by three planetary gears
Rear Differential Lock	Electrohydraulic Full Lock System

Front Axle

Type	Standard: 1150 Series Heavy Duty MFWD Front Axle Option: 1150 Series Front-Wheel Drive, Wide, Heavy-Duty Axle for 3-m (10.8-ft) tread setting Option: 1150 Series Triple Link Suspension (TLS) Axle
Front Axle Differential Lock	Electrohydraulic Full Lock System

Rims

Rear Side	Group 47
Turning radius with brakes	6.87 MPa 22.5 ft

Steering

Type	Standard - Hydraulic power steering

Electrical System

Alternator Size	Standard: 200 amp
Battery Options	12 V
Work Lights	Standard: 10 light-emitting diodes (LED)
Road Light Bulb Type (Halogen, Zenon, LED)	Standard: LED
Total Cold Start Amperage	2 x 925 CCA Total: 1850 CCA

Operator Station

Seat	Degree of seat swivel, left-hand side Eight degree (angle) Degree of seat swivel, right-hand side 16 degree (angle) Standard: Air suspension
Cab Suspension	No
Instructional Seat	Standard equipment
Display	Standard: G5Plus Universal Display 32.5 cm (10 in.) 12.8 in. Optional: G5Plus CommandCenter™ 32.5 cm (10 in.) and Extended Monitor
Radio	Standard: AM/FM and Bluetooth® functions, USB port for charging smartphones, four speakers
Cab Inner Volume	3.27 m 3115 cu ft

Dimensions

Wheelbase	2860 mm 112.6 in.
Overall Length	With front weight and rear 3-point hitch: 5824 mm (180 in.) 229.3 in.
Drawbar clearance	Group 47 tires: 527 mm 20.7 in.
Approximate Shipping Weight, Open Station, Cab	10,900 kg 21 800 lb

Weight

Base Machine Weight	9200 kg 18 400 lb
Maximum counterweight level	11 800 kg 26 015 lb

Capacities

Crankcase Oil Volume	26 L 6.86 U.S. gal.
Fuel Tank Capacity	430 L 113,5 U.S. gal.
Cooling System	29 L 7,66 U.S. gal.
Transmission and Hydraulic System	108 L 28,53 U.S. gal.

Serviceability Easy

Engine Oil Change Interval	500 Hours
Transmission/hydraulic oil change interval	1500 Hours
Engine coolant change interval	600 Hours

Precision Ag

Guidance	AutoTrac™ Integrated
Telematics	Available with JDLink™ Ethernet Harness, Activations, and Hardware (target availability)
Remote Diagnostics	Available with activated JDLink activations and hardware
