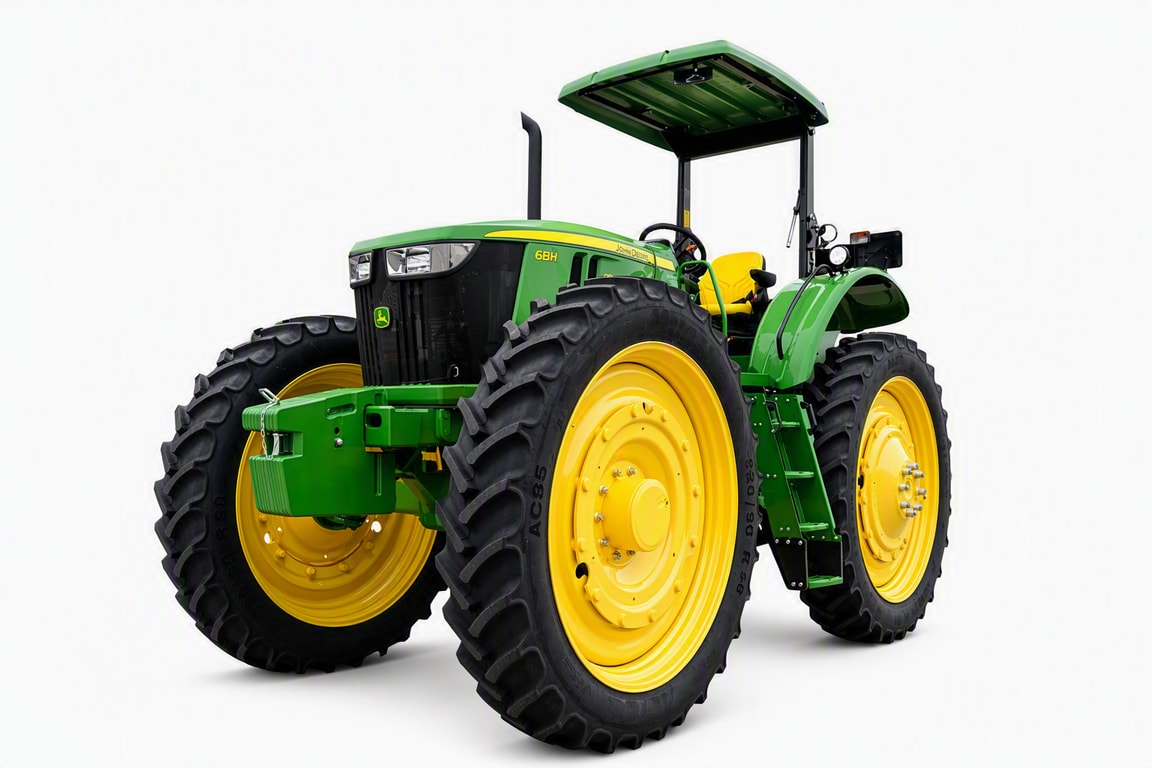

6BH 110
- Specialized for row-crop spraying
- Flexible tread width settings
- Enhanced Crop Protection
- Flexible Row-Crop Adaptability
- Increased Spraying Efficiency
- Purpose-Built Sprayer Configuration
- Connected & Operator-Friendly Design
Specifications
| Specifications | ||||
|---|---|---|---|---|
| John Deere 6BH 110
|
Key Specs 6BH 110 OOS
| Engine | John Deere PTE, 4 Cylinders 4.5L | |||
|---|---|---|---|---|
| Rated Engine Power | 81 kW (110HP) | |||
| Rated PTO Power (hp SAE) | ≥65.3 kW (88.8PS) | |||
| Transmission | 12X12 WC TSS 30K PR with 6x6 Creeper (0.57-2.19 Km/H) | |||
| Hydraulic System | Open-Center 60L/M / 76L/M (Optional) | |||
| Rear Selective Control Valves | 2/3 | |||
| Ground Clearance –Drawbar (lowest point) | 800 mm | |||
| 3-Point hitch | Category II / Category III N | |||
| Maximum Lift Capacity (610 mm behind the coupling points) | ≥3250 kg | |||
| Power Take Off | 6-Spline 540 rpm / 21-Spline 1.000 rpm (Reversible Stub Shaft) | |||
| Wheel Tread Spacing | 1842 mm-2148 mm | |||
| Wheelbase | 2580 mm | |||
| Base Weight | 5240 kg |
Key Specs 6BH 110 Cab
| Engine | John Deere PTE, 4 Cylinders 4.5L | |||
|---|---|---|---|---|
| Rated Engine Power | 81 kW (110HP) | |||
| Rated PTO Power (hp SAE) | ≥65.3 kW (88.8PS) | |||
| Transmission | 12X12 WC TSS 30K PR with 6x6 Creeper (0.57-2.19 Km/H) | |||
| Hydraulic System | Open-Center 60L/M / 76L/M (Optional) | |||
| Rear Selective Control Valves | 3 | |||
| Ground Clearance –Drawbar (lowest point) | 800 mm | |||
| 3-Point hitch | Category II / Category III N | |||
| Maximum Lift Capacity (610 mm behind the coupling points) | ≥3250 kg | |||
| Power Take Off | 6-Spline 540 rpm / 21-Spline 1.000 rpm (Reversible Stub Shaft) | |||
| Wheel Tread Spacing | 1842 mm-2148 mm | |||
| Wheelbase | 2580 mm | |||
| Base Weight | 5430 kg |
