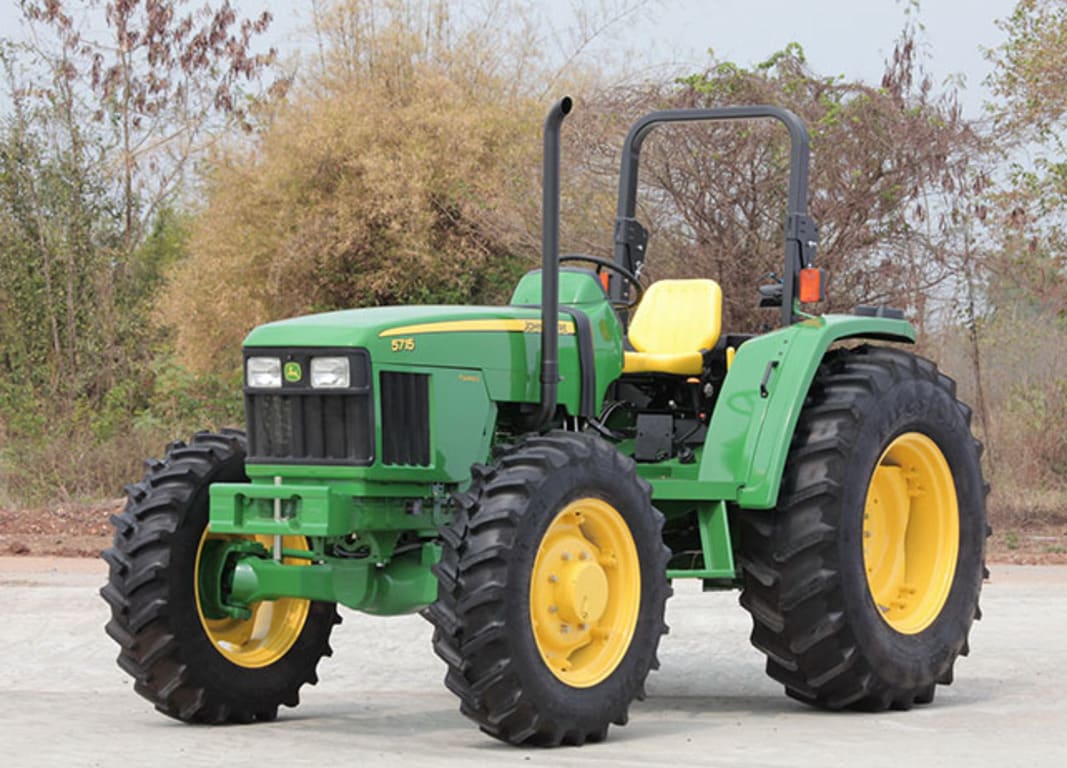

57155715 Utility Tractor
- 90 Hp Engine with four-wheel drive
- 9F/3R transmission
- Open operator System
- Available Market: Thailand, Cambodia, Indonesia, Malaysia, Philippines, Myanmar, Vietnam
Specs & Compare
| Specs & Compare | ||||
|---|---|---|---|---|
| John Deere 5715 5715 |
Key Specifications
| Engine John Deere PowerTech 4 Cyclinder Engine, 2100RPM | John Deere PowerTech 4 Cyclinder Engine, 2100RPM | |||
|---|---|---|---|---|
| Horsepower | 89 hp (66.4kW) | |||
| Transmission | 9F, 3R Collar Shift |
Engine
| Type (Tier 0) | 4045TP066 | |||
|---|---|---|---|---|
| Aspiration (Tier 0) | Turbocharged | |||
| Engine Power @ 2400 rpm (Tier 0) | 89 hp (66.4 kW) | |||
| PTO Power @ 2400 rpm (Tier 0) | 77 hp (57.4 kW) | |||
| Maximum Torque (Tier 0) | 317 N.m | |||
| Cylinders | 4 | |||
| Displacement | 4.5 L (278 cu .in3) | |||
| Compression ratio (Tier 0) | 17.0:1 | |||
| Bore and Stroke | 106.5 x 127 mm (4.19 x 5.00 in.) |
Transmission
| Standard | Standard - Top shaft Syncronized 9F/3R Sychronization - All Speeds 1st, 2nd & 4rd |
|||
|---|---|---|---|---|
| Auxiliary Brake | Parking Pawl |
Clutch
| Type | Dry |
|---|
PTO
| Type | Fully Independent, 540 rpm | |||
|---|---|---|---|---|
| PTO Speed | 2400 rpm | |||
| Size | 280 mm (11 in.) |
Hydraulic System
| Types | Open Center | |||
|---|---|---|---|---|
| Pump | Tandem Gear | |||
| Flow Rate | Steering - 24.9 L/min (6.6 gpm) Implement - 60.2 L/min (15.9 gpm) |
|||
| Hitch Load Capacity @ 610 mm behind hitch point | 1530 kg (3374 lb) | |||
| Category | I & II | |||
| Sensor | Draft Links with interchangable balls |
Steering
| Type | Hydrostatic |
|---|
Brakes
| Type | Hyraulically Activated Wet Disk |
|---|
Electrical System
| Type | 12V Negative Ground | |||
|---|---|---|---|---|
| Battery | 12V Cold Cranking Ams 550 | |||
| Alternator | 70 A |
Capacities
| Fuel Tank | Fuel Tank - 95 L (25 U.S. gal.) Front - 7.5 x 16.0 Front (Optional) - 10.0 x 16.0 Rear - 15.5 x 38 Rear (Optional) - 18.4 x 30 |
|||
|---|---|---|---|---|
| Engine Cooling System | Engine Cooling System - 10.8 L (11.4 U.S. qt) Front - 13.6 x 24 Front (Optional) - 12.4 x 24 Rear - 15.5 x 38 Rear (Optional) - 18.4 x 30 Rear (Optional) - 18.4 x 30 (casting hub) |
|||
| Crankcase (including filter) | 8.5 L (9 U.S. qt.) | |||
| Transmission/Hydraulic System (MFWD) | 41.8 L (11 U.S. gal.) |
Dimensions
| Wheelbase | 2180 mm (85.8 in) | |||
|---|---|---|---|---|
| Total length (including draft arms) | 3570 mm (140.5 in.) | |||
| Overall width (outside edge of tires) | 2100 mm (82.6 in.) | |||
| Front axle crop clearance | 420 mm (16.5 in.) | |||
| Height to top of drawbar | 513 mm (20.1 in.) | |||
| Estimated shipping weight | 2687 kg (5923.9 lb) |
Tires
| Standard front tires | Standard front tires - 13.6 x 24 8PR R1 Optional front tires - 11.2 x 24 8PR R1 Optional front tires - 12.4 x 24 8PR R1 |
|||
|---|---|---|---|---|
| Standard rear tires | OPtional rear tires - 16.9 x 30 6PR R1 Optional rear tires - 18.4 x 30 8PR R1 Optional rear tires - 18.4 x 30 10PR R2 |
Basic Equipment
| Water bowl separator |
|
|||
|---|---|---|---|---|
| Seat belt |
|
|||
| Rops |
|
|||
| One selective control valve |
|
|||
| Foot throttle |
|
|||
| SMV Emblem |
|
|||
| Two front and one rear working lights |
|
|||
| Rear brake lights |
|
|||
| 7 Pin connector |
|
|||
| Front weight support |
|
|||
| Operators manual |
|
Optional Equipment
| Front fenders (MFWD) |
|
|||
|---|---|---|---|---|
| Toolbox |
|
|||
| Deluxe canopy |
|
|||
| 2nd Rear Selective Control Valve |
|
|||
| 2 Function Joystic with mid valve |
|
|||
| Seat armrest |
|
|||
| Horn |
|
