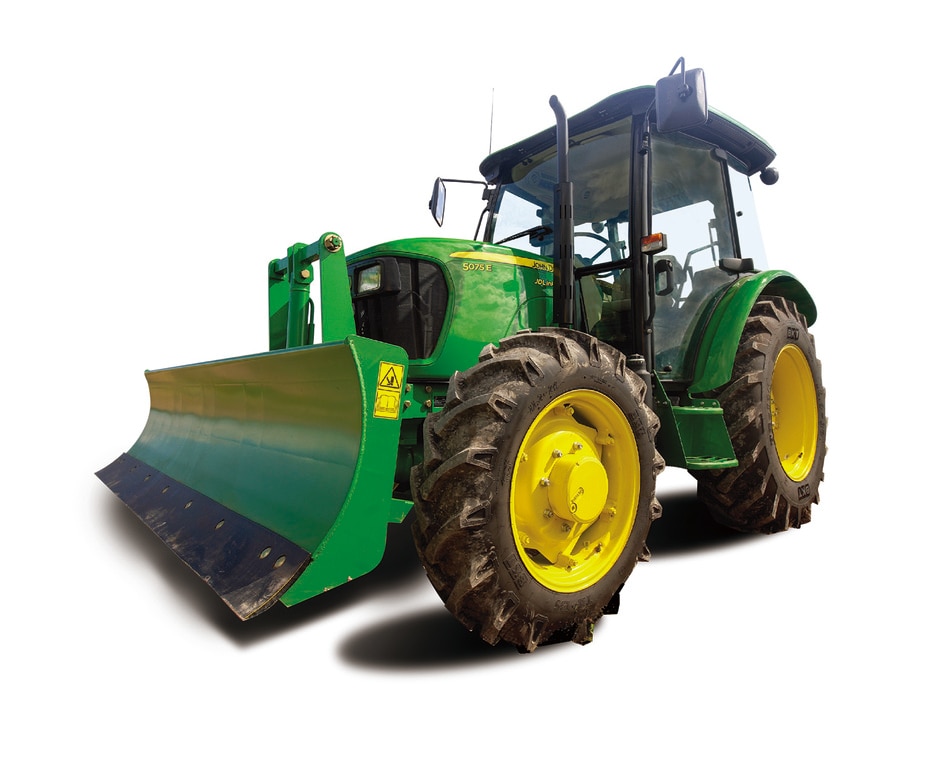

5075EUtility Tractor
- 4 Wheel Drive
- Smart Brakes
- 9F/3R or 12F/12R PowrReverser™ transmission
- HVAC Cab or Open Operator's station
- Available Market: Thailand, Cambodia, Indonesia, Malaysia, Philippines, Myanmar, Vietnam
Specs & Compare
| Specs & Compare | ||||
|---|---|---|---|---|
| John Deere 5075E 5075E Utility Tractor |
ENGINE
| Type | 75 HP, 2400 RPM, Turbo charged, | |||
|---|---|---|---|---|
| Airfilter | Dry type, dual element |
TRANSMISSION
| Clutch | Dual | |||
|---|---|---|---|---|
| Gear Box | 9 Forward + 3 Reverse, TSS | |||
| Speeds | Forward 2.13 to 29.97 kmph, Reverse 3.58 to 24.12 kmph |
BRAKES
| Self-adjusting, self-equalizing, hydraulically actuated oil immersed disc brakes |
|
|---|
HYDRAULICS
| Lifting Capacity | 1800 kg at lower link ends | |||
|---|---|---|---|---|
| 3 Point linkage | Category II | |||
| Automatic depth & draft control |
|
Steering
| Type | Power |
|---|
Power Take Off
| Dual Type | 4WD | |||
|---|---|---|---|---|
| RPM | Dual PTO, 540 at 2376 ERPM & 540E at 1705 ERPM |
WHEELS AND TYRES
| Front | 11.2 x 24 and 16.9 x 30 (4WD) | |||
|---|---|---|---|---|
| Rear | 12.4 x 24 and 18.4 x 30 (4WD) |
FUEL TANK CAPACITY
| 68 litres |
|
|---|
ELECTRICAL SYSTEM
| 88Ah, 12 volt battery 40 Amp. alternator 12 Volt, 2.5 kW starter motor |
|
|---|
Dimensions & Weight of Tractor
| Total Weight | 2425 kg | |||
|---|---|---|---|---|
| Wheel Base | 2050 mm | |||
| Overall length | 4026 mm (front weight to TPL (with ballast) | |||
| Overall width | 1901 mm (from rear RH tyre to LH tyre (with ballast)(2+2 rear weights) | |||
| Ground clearance | 403 mm |
Shop and Buy
Maintenance and Support
Product features are based on published information at the time of publication. Product features are subject to change without notice. Contact your local John Deere dealer for more information.
*Beginning 9/1/2016 all 5E Series Utility Tractors purchased new from an authorized John Deere Dealer come standard with a 5 year/2000 hour (whichever comes first) Powertrain Warranty. See the Limited Warranty for New John Deere Turf & Utility Equipment at dealer for details.
