| Specs & Compare | ||||
|---|---|---|---|---|

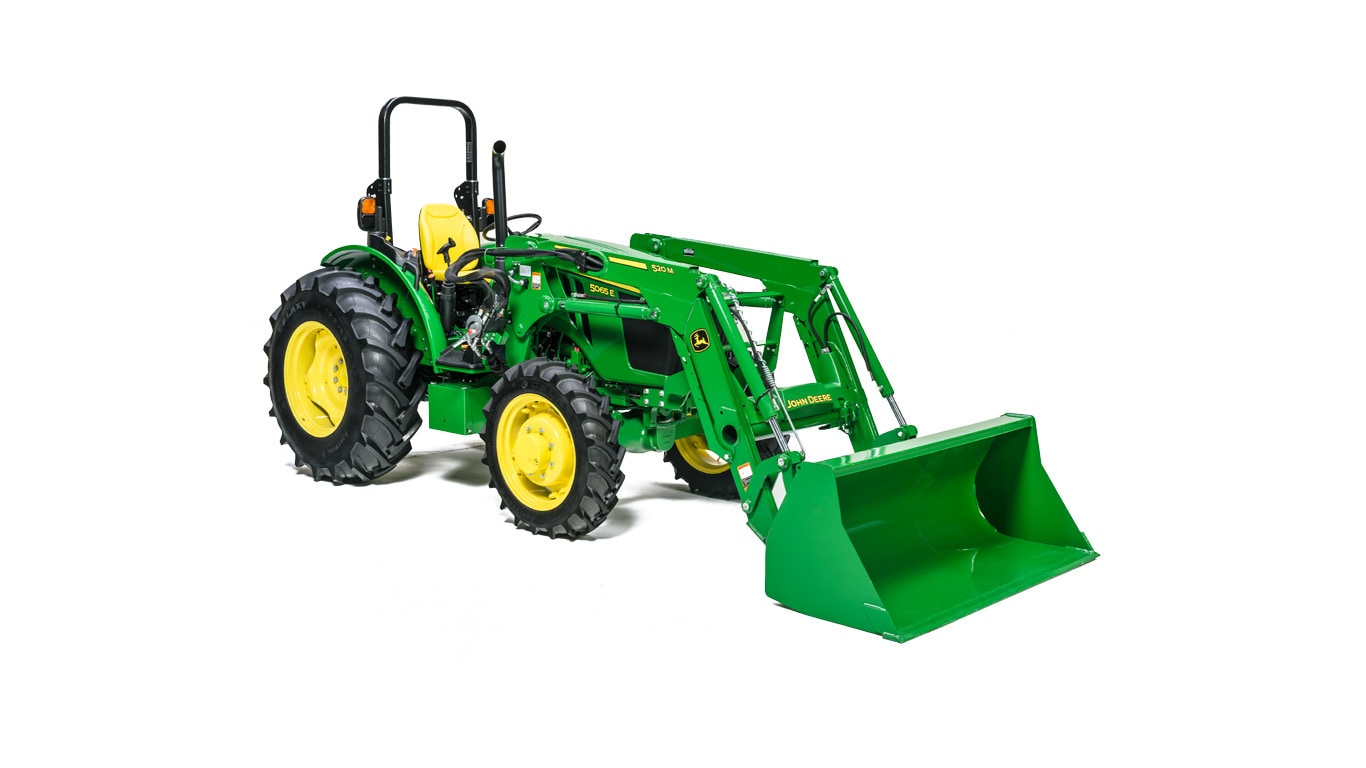

| John Deere 5065E Utility Tractor |
| Aspiration | Turbocharger | |||
|---|---|---|---|---|
| No. of Cylinders | 3 | |||
| Displacement (liter) | 2.9 | |||
| Rated Power (hp) | 65 | |||
| Rated Engine Speed (rpm) | 2400 | |||
| Fuel Tank Capacity (liter) | 68 (OOS) 82 (Cab) |
|||
| Cooling Package | Liquid cooled with overflowed reservoir | |||
| Air Filter | Dry type, dual element |
| Gears | 9 x 3 (CS / TSS) / 12 x 12 (PR) | |||
|---|---|---|---|---|
| Clutch | Dual / Hydraulic |
| PTO Actuation | Independent | |||
|---|---|---|---|---|
| PTO Speed (r/min) | 540@2376 ERPM / 540E@1705 ERPM |
| Type | ADDC-Open Center | |||
|---|---|---|---|---|
| Maximum lift capacity | 2000 KGF (Standard) / 2500KGF (Optional) | |||
| Hitch Category | Cat II |
| Type of Steering | Power Steering | |||
|---|---|---|---|---|
| Type of Brake | Hydraulic Actuated Oil Immersed Disc Brake |
| Battery | 12V, 88Ah | |||
|---|---|---|---|---|
| Electric Shutoff | Electric |
| Front Tire | 11.2x24 12.4 x 24 |
|||
|---|---|---|---|---|
| Rear Tire | 18.4 x 30 16.9x28/HLD |
| Total Weight (kg) | 2425 (4WD) | |||
|---|---|---|---|---|
| Wheel Base (mm) | 2050 | |||
| Overall Length (mm) | 4026 | |||
| Overall Width (mm) | 1901 |
Product features are based on published information at the time of publication. Product features are subject to change without notice. Contact your local John Deere dealer for more information.
*Beginning 9/1/2016 all 5E Series Utility Tractors purchased new from an authorized John Deere Dealer come standard with a 5 year/2000 hour (whichever comes first) Powertrain Warranty. See the Limited Warranty for New John Deere Turf & Utility Equipment at dealer for details.
