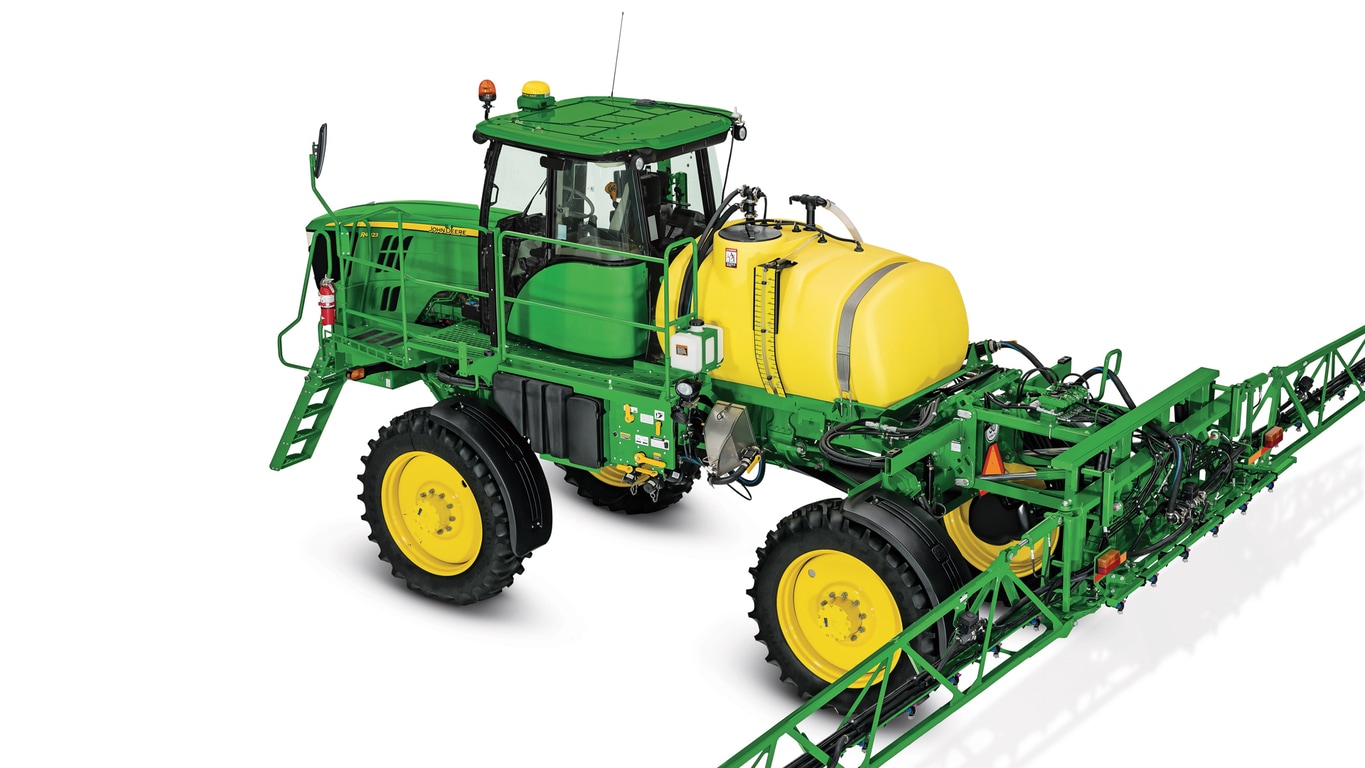

| John Deere R4023 R4023 Sprayer |
| Emissions | Final Tier 4 | |||
|---|---|---|---|---|
| Peak rated power | 129 kW 173 hp | |||
| Number of cylinders | 4 | |||
| Displacement | 4.5 L 276 cu in. | |||
| Fuel tank capacity | 310 L 82 gal. | |||
| Diesel exhaust fluid (DEF) tank capacity | 17 L 4.5 gal. |
| Capacity | 2300 L 600 gal. | |||
|---|---|---|---|---|
| Tank material | Polyethylene | |||
| Rinse tank capacity | 265 L 70 gal. | |||
| Quick fill size | 5.1 cm 2 in. | |||
| Automatic section control | John Deere Section Control (optional) | |||
| Solution system control | Manual | |||
| Fill location | Side fill | |||
| Chemical eductor | Stainless steel | |||
| Chemical eductor capacity (size) | 20 L 5.5 gal. | |||
| Flow meter size | 5.1 cm 2 in. | |||
| Suction strainer | 16 mesh | |||
| Pressure strainer | 50 mesh | |||
| Boom strainer | 80 mesh |
| Type | Hydrostatic tandem Saur pumps Pump size is tandem - 75 cc 4.58 cu in. | |||
|---|---|---|---|---|
| Drive | Full-time four-wheel drive (4WD) | |||
| Shifting | Electrohydraulic (on the go) | |||
| Hydraulic reservoir capacity | 61 L 16 gal. | |||
| Spray speed range | 0 to 32 km/h 0 to 20 mph | |||
| Transport speed, maximum | 43 km/h 27 mph |
| Dry compatible | No | |||
|---|---|---|---|---|
| Suspension | Air bar/shock suspended | |||
| Crop clearance with standard tires | Narrow - 112 cm 44 in. Wide - 127 cm 50 in. | |||
| Front tires | IF320/80R42, 380/R80R38, IF380/80R38, or 420/85R34 | |||
| Rear tires | IF320/80R42, 380/R80R38, IF380/80R38, or 420/85R35 | |||
| Hydraulic tread adjust | Manual standard Hydraulic optional (wide only) | |||
| Wheel tread spacing | Narrow - 183 to 224 cm 72 to 88 in. Wide - 229 to 305 cm 90 to 120 in. | |||
| Wheel base | 373 cm 147 in. | |||
| Turning radius | 4.9 m 16 ft | |||
| Parking brake | Hydraulic release | |||
| Primary brakes | Hydrostatic | |||
| Ladder raise/lower | Hydraulic | |||
| Total weight with 80-ft boom | 8,240 kg 18,165 lb |
| Air compressor | Standard | |||
|---|---|---|---|---|
| Foam marker capacity | Direct injection optional |
