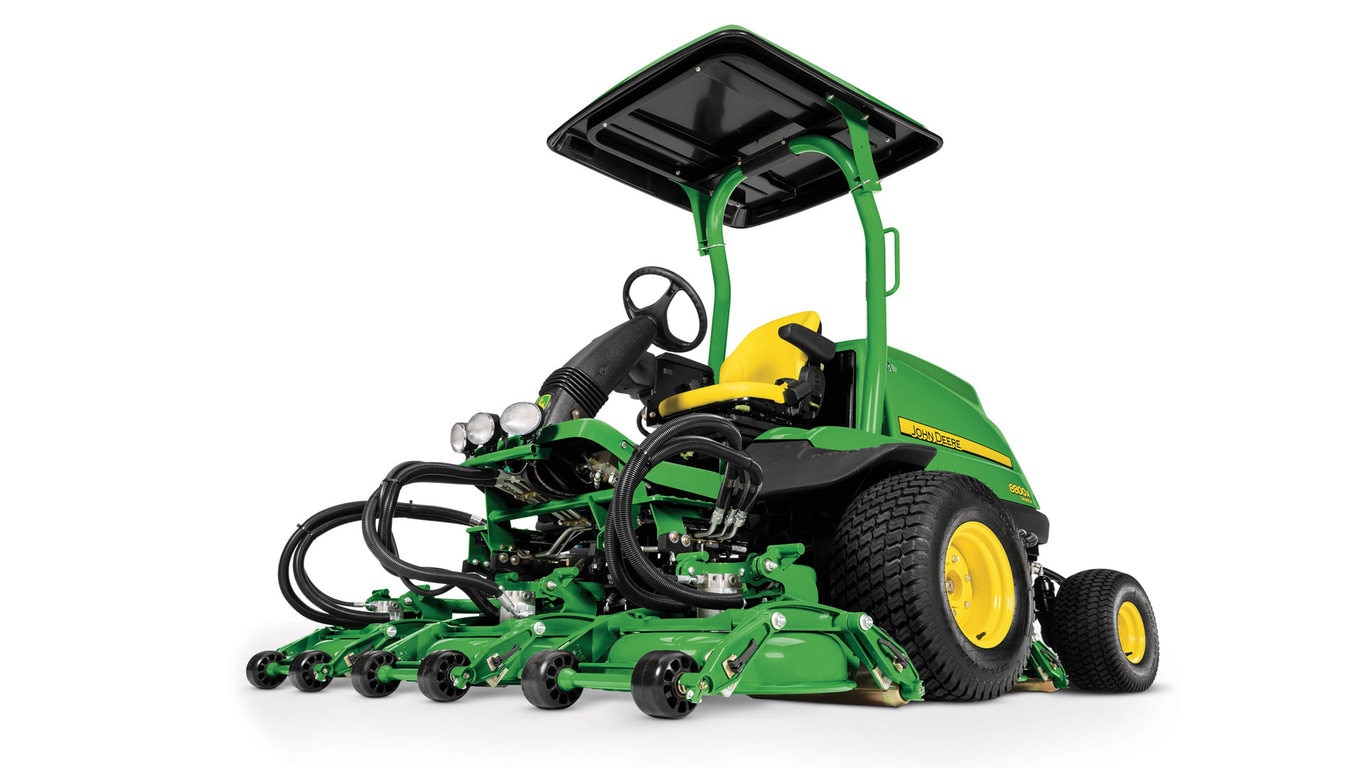

8800A TerrainCut™Rough, Trim & Surrounds Mower
- TechControl™ Display locks in performance, and uptime
- LoadMatch™ to maintain cut quality
- 27% more hp, 20 percent more torque in the mowing circuit
- Final Tier 4 without sacrificing horsepower
Specs & Compare
| Specs & Compare | ||||
|---|---|---|---|---|
| John Deere 8800A TerrainCut™ Rough, Trim & Surrounds Mower |
Key Specs
| Maximum rated horsepower | At 2800 rpm ISOC: 41.1 kW 55.1 hp |
|||
|---|---|---|---|---|
| Drive pump | Tandem gear pump | |||
| Ground pressure | 82.7-124 kPa 12-18 psi |
|||
| Throttle | Automatic controls with AutoPedal™ foot controls; manual control through TechControl display | |||
| Operator display | TechControl Display: Located on Command Arm; displays machine warnings, on-board electrical diagnostics; service timers on large easy to read screen; quick on the go settings for mow and transport speed; Turn Speed; Loadmatch™ and ON/OFF Cruise Control Use selection: all settings are pass code protected | |||
| Mowing speed | 0-12.8 km/h 0-8 mph |
|||
| Total width of cut | 53.3 cm 21 in. |
|||
| Frequency of clip (FOC Reels) OR Blade tip speed (decks) | 4572 m/min 15,000 fpm |
Engine
| Type | Direct Inject Turbocharged Diesel | |||
|---|---|---|---|---|
| Compliant emission regulation | United States and Canada Tier 4 | |||
| Horsepower | Maximum rated horsepower At 2800 rpm ISOC: 41.1 kW 55.1 hp |
|||
| Cylinders | Four | |||
| Displacement | 2.091 L 127.6 cu in. |
|||
| Air cleaner | 2-stage dry element | |||
| Fuel | Diesel up to B20 compliant | |||
| Cooling system | Liquid centrifugal pump; forward machine location for optimum cooling |
Vehicle
| Drive pump | Tandem gear pump | |||
|---|---|---|---|---|
| Cutting units drive | Direct-coupled hydraulic gear motor | |||
| Hydraulic system capacity | 45.4 L 12 U.S. gal. |
|||
| Fuel tank capacity | 61.7 L 16 U.S. gal. |
|||
| Steering | Hydraulic power with dual rod, double acting steering cylinder | |||
| Front drive tires | 26x12-12 Multi Trac | |||
| Steering tires | 20x12X10-8 turf | |||
| Ground pressure | 82.7-124 kPa 12-18 psi |
|||
| Brakes | Electric Switch on Command Arm for Internal Wet Disk Brakes | |||
| ROPS | Standard, meets ISO 21299 standards |
Controls
| Throttle | Automatic controls with AutoPedal™ foot controls; manual control through TechControl display | |||
|---|---|---|---|---|
| Forward/reverse | 2-pedal | |||
| Mower lift | One-touch single handle | |||
| Parking brake | Electric Switch on Command Arm for Internal Wet Disk Brakes | |||
| Seat | Suspension seat with seat belts and arm rest; fore/aft adjustment; weight and lumbar adjustment | |||
| PTO | Electric Switch on Command Arm | |||
| Tilt steering | Left Foot operated for easy adjustment | |||
| Operator display | TechControl Display: Located on Command Arm; displays machine warnings, on-board electrical diagnostics; service timers on large easy to read screen; quick on the go settings for mow and transport speed; Turn Speed; Loadmatch™ and ON/OFF Cruise Control Use selection: all settings are pass code protected | |||
| Storage | Cup holder; two-way radio; large operator storage located on left hand side of operator station |
Dimensions
| Height with ROPS | 2.24 m 88 in. |
|||
|---|---|---|---|---|
| Length | 3.38 m 133 in. |
|||
| Transport width | 2.21 m 87 in. |
|||
| Mowing position width | 2.23 m 88 in. |
|||
| Ground speed | Mowing 0-12.8 km/h 0-8 mph Transport 0-20.12 km/h 0-12.5 mph Reverse 9.6 km/h 6 mph |
Cutting Units
| Total width of cut | 53.3 cm 21 in. |
|||
|---|---|---|---|---|
| Height of cut | Construction 10 gauge 3.4 mm 0.1345 in. Steel with front skid plate No tool adjustment: 2.54-10.2 cm 1-4 in. |
|||
| Frequency of clip (FOC Reels) OR Blade tip speed (decks) | Rollers Rear: 7.6 cm Rear: 3 in. Front: Two: diameter: 10.2 cm Front: Two: diameter: 4 in. Wide: 12.7 mm Wide: 5 in. 4572 m/min 15,000 fpm |
Sound levels
| Operator ear full engine | 91 dBA | |||
|---|---|---|---|---|
| Measuring standard | ISO 11201 |
Fuel Economy
| Actual Fuel usage will vary depending on course conditions, operation, turf and fuel quality | 25% load: 3.63 L/hr 0.96 gph 40% load: 5.64 L/hr 1.49 gph 50% load: 6.85 L/hr 1.81 gph |
|---|
Warranty
| Type | Two-year limited |
|---|
Certification
| Type | ANSI B71.4-2012. |
|---|
