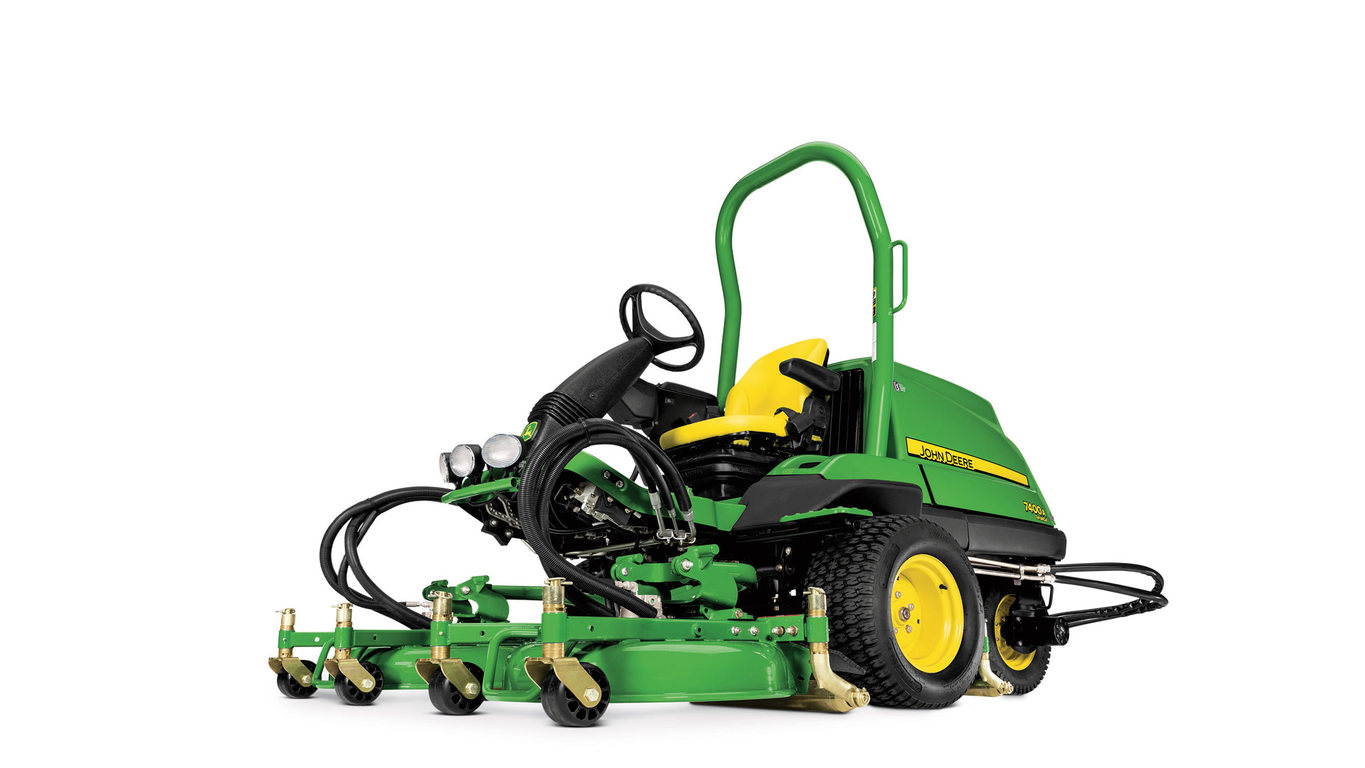

7400A TerrainCut™Rough, Trim & Surrounds Mower
- TechControl™ Display locks in performance, and uptime
- LoadMatch™ to maintain cut quality
- 35% larger traction drive, 17% larger wheel motor displacement
- Available in both Final Tier 4 and Non-Tier 4
Specs & Compare
| Specs & Compare | ||||
|---|---|---|---|---|
| John Deere 7400A TerrainCut™ Rough, Trim & Surrounds Mower |
Key Specs
| Maximum rated horsepower | At 2800 rpm ISOC: 31 kW 41.6 hp |
|||
|---|---|---|---|---|
| Drive pump | Gear | |||
| Ground pressure | 96.5 kPa 14 psi |
|||
| Throttle | Automatic controls with AutoPedal™ foot controls; manual control through TechControl display | |||
| Mowing speed | 0-10 km/h 0-6 mph |
|||
| Cutting unit size | 68.6 cm 27 in. |
|||
| Total width of cut | Width on Demand system: 172.7 cm 68 in. Or 188 cm 74 in. |
|||
| Reel diameter | 17.8 cm 7 in. |
Engine
| Type | Direct Inject Turbocharged Diesel | |||
|---|---|---|---|---|
| Compliant emission regulation | United States and Canada Tier 4 | |||
| Horsepower | Maximum rated horsepower At 2800 rpm ISOC: 31 kW 41.6 hp |
|||
| Cylinders | 3 | |||
| Displacement | 1.568 L 95.69 cu in. |
|||
| Air cleaner | 2-stage dry element | |||
| Fuel | Diesel | |||
| Cooling system | Liquid centrifugal pump; forward machine location for optimum cooling |
Vehicle
| Drive pump | Gear | |||
|---|---|---|---|---|
| Hydraulic system capacity | 45.4 L 12 U.S. gal. |
|||
| Fuel tank capacity | 45.4 L 12 U.S. gal. |
|||
| Steering | Hydraulic power with double acting steering cylinder | |||
| Front drive tires | 24 x 12 - 12 turf trac | |||
| Steering tires | 24 x 12 - 12 multi trac | |||
| Ground pressure | 96.5 kPa 14 psi |
|||
| Brakes | Internal hydraulic wet disc brakes with dynamic braking through closed loop hydrostatic system | |||
| ROPS | Standard; meets ISO 21299 standards |
Operating weight
| Cutting units lowered | Decks up: 1252 kg 2760 lb Decks down: 1045 kg 2305 lb |
|---|
Controls
| Throttle | Automatic controls with AutoPedal™ foot controls; manual control through TechControl display | |||
|---|---|---|---|---|
| Forward/reverse | Dual pedal | |||
| Mower lift | One-touch single handle | |||
| Parking brake | Electric Switch on Command Arm for Internal Wet Disk Brakes | |||
| Seat | Suspension seat with seat belts and arm rest; fore/aft adjustment; weight and lumbar adjustment | |||
| PTO | Electric Switch on Command Arm | |||
| Ignition | Key start | |||
| Work lights | Switch on Command Arm | |||
| Tilt steering | Left Foot operated for easy adjustment | |||
| Storage | Cup holder; two-way radio; large operator storage located on left hand side of operator station |
Dimensions
| Height with ROPS | 213.4 cm 84 in. |
|||
|---|---|---|---|---|
| Length | 338 cm 133 in. |
|||
| Transport width | 179 cm 70.5 in. With width of cut of: 173 cm 68 in. 194.3 cm 76.5 in. With width of cut of: 188 cm 74 in. |
|||
| Wheelbase | 157.5 cm 62 in. |
|||
| Ground speed | Mowing 0-10 km/h 0-6 mph Transport 0-14 km/h 0-9 mph Reverse 0-6.4 km/h 0-5 mph |
Cutting Units
| Number | Three rotary decks; no tool adjustment | |||
|---|---|---|---|---|
| Size | 68.6 cm 27 in. |
|||
| Total width of cut | Width on Demand system: 172.7 cm 68 in. Or 188 cm 74 in. |
|||
| Height of cut | Construction Five or eight blades 2.5-10.2 cm 1-4 in. With increments of 0.6 cm 0.25 in. No tool adjustment |
|||
| Frequency of clip (FOC Reels) OR Blade tip speed (decks) | Rollers Optional: grooved, solid, or spiral: 7.5 cm 3 in. |
|||
| Reel diameter | 17.8 cm 7 in. |
|||
| Bedknife adjustment | Reel-to-bedknife | |||
| Backlapping | Standard |
Sound levels
| Operator ear full engine | 92 dBA | |||
|---|---|---|---|---|
| Measuring standard | ISO 11201 | |||
| Attachments installed | FTCs, reels engaged |
Fuel Economy
| Actual Fuel usage will vary depending on course conditions, operation, turf and fuel quality | 25% load: 2.8 L/hr 0.74 gph 40% load: 4.32 L/hr 1.14 gph 50% load: 5.22 L/hr 1.38 gph |
|---|
Warranty
| Type | Two-year limited |
|---|
Certification
| Type | ANSI B71.4-2012. |
|---|
