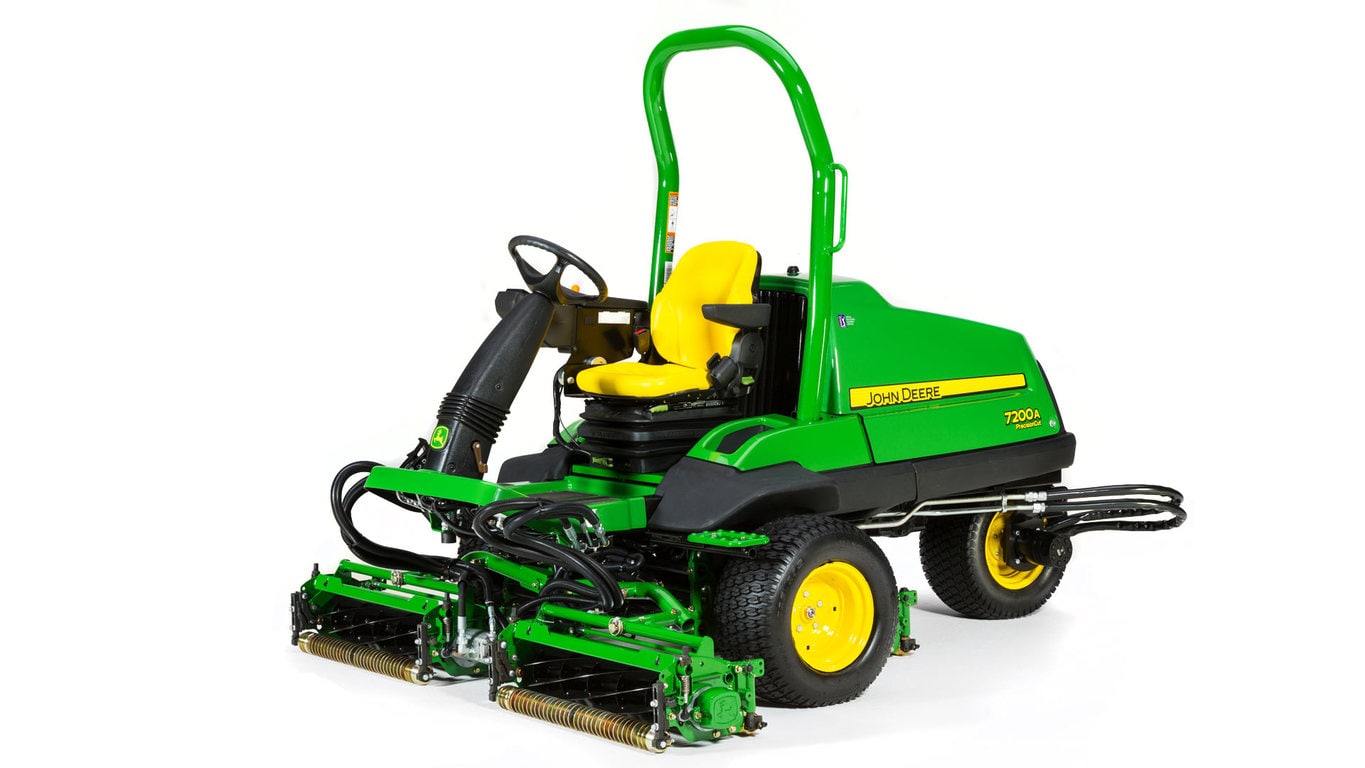

7200A PrecisionCut™Rough, Trim & Surrounds Mower
- 19.69 kW (26.4 hp) diesel engine
- GRIP All-Wheel Drive Traction System
- Front and rear roller options
- Convenient service check locations
Specs & Compare
| Specs & Compare | ||||
|---|---|---|---|---|
| John Deere 7200A PrecisionCut™ Rough, Trim & Surrounds Mower |
Engine
| Type | In-Direct Inject Diesel | |||
|---|---|---|---|---|
| Horsepower | Maximum rated horsepower At 2600 rpm: 15.8 kW 21.2 hp |
|||
| Cylinders | 3 | |||
| Displacement | 1.267 L 77.32 cu in. |
|||
| Air cleaner | 2-stage dry element | |||
| Fuel | Diesel | |||
| Cooling system | Liquid centrifugal pump; forward machine location for optimum cooling |
Vehicle
| Drive pump | Gear | |||
|---|---|---|---|---|
| Hydraulic system capacity | 45.4 L 12 U.S. gal. |
|||
| Fuel tank capacity | 45.4 L 12 U.S. gal. |
|||
| Steering | Tilt; Hydraulic power with double acting steering cylinder | |||
| Front drive tires | 24 x 12 - 12 turf trac | |||
| Steering tires | 24 x 12 - 12 multi trac | |||
| Ground pressure | 96.5 kPa 14 psi |
|||
| Brakes | Internal hydraulic wet disc brakes with dynamic braking through closed loop hydrostatic system | |||
| ROPS | Standard; meets ISO 21299 Standard |
Operating weight
| Cutting units lowered | 1039 kg 2290 lb |
|---|
Controls
| Throttle | Hand throttle | |||
|---|---|---|---|---|
| Mower lift | One-touch single handle | |||
| Parking brake | Electric Switch on CommandArm for Internal Wet Disk Brakes | |||
| Seat | Suspension seat with seat belts and arm rest; fore/aft adjustment; weight and lumbar adjustment | |||
| PTO | Electric Switch on Command Arm | |||
| Ignition | Key start | |||
| Work lights | Switch on Command Arm | |||
| Tilt steering | Left foot operated for easy adjustment | |||
| Storage | Cup holder; two-way radio; large operator storage located on left hand side of operator station |
Dimensions
| Height with ROPS | 213.4 cm 84 in. |
|||
|---|---|---|---|---|
| Length | 338 cm 133 in. |
|||
| Transport width | 173 cm 68 in. |
|||
| Wheelbase | 157.5 cm 62 in. |
|||
| Ground speed | Mowing 0-10 km/h 0-6 mphTransport 0-14 km/h 0-9 mphReverse 0-6.4 km/h 0-5 mph |
Cutting Units
| Number | 3 reel cutting units | |||
|---|---|---|---|---|
| Size | Quick Adjust QA7: 66 cm 26 in. or QA7: 76 cm 30 in. |
|||
| Height of cut | Construction Five or eight blades |
|||
| Frequency of clip (FOC Reels) or Blade tip speed (decks) | Rollers Optional: grooved, solid, or spiral: 7.5 cm 3 in. Eight Blade: 1.99 mm/km/h 0.126 in./mph Five Blade: 3.17 mm/km/h 0.201 in./mph |
|||
| Reel diameter | 17.8 cm 7 in. |
|||
| Bedknife adjustment | Reel-to-bedknife | |||
| Backlapping | Standard |
Sound levels
| Operator ear full engine | 87 +/- 1 dBA | |||
|---|---|---|---|---|
| Measuring standard | ISO 11201, EN ISO5395-1 | |||
| Attachments installed | FTCs, reels engaged |
Fuel economy
| Actual fuel usage will vary depending on course conditions, operation, turf and fuel quality | 25% load: 1.74 L/hr 0.46 gph 40% load 2.65 L/hr 0.7 gph 50% load: 3.03 L/hr 0.8 gph |
|---|
Warranty
| Type | Two-year limited |
|---|
Certification
| Type | ANSI B71.4-2012, CE |
|---|
