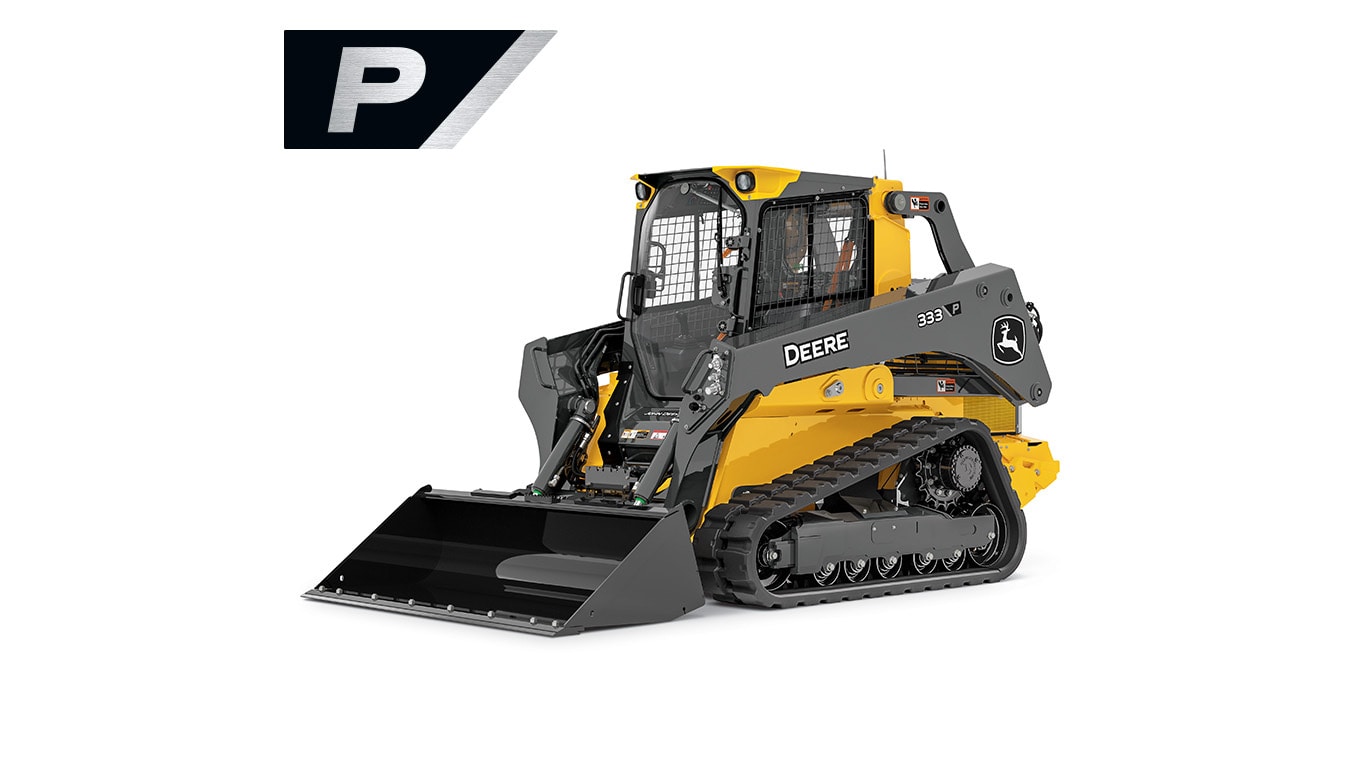

333 P-TierCompact Track Loader
- Rated Operating Capacity: 1748 kg (3,850 lb.)
- Gross Horsepower: 80.9 kW (108.5 hp)
- Net Peak Power: 78.9 kW (105.8 hp)
- Operating Weight: 5531 kg (12,183 lb.)
- Bucket Breakout Force: 6243 kg (13,750 lb.)
Features
Expand All
Collapse All
333 P-Tier Compact Track Loader
Compact Track Loader with Laser Slope Control
Dealer and Skid Steer Customer
334 P-Tier Compact Track Loader with high flow cold planer
View of the new cab layout
New touchscreen monitor in upper right corner
P-Tier machines with new attachment offerings
Machine with Laser Slope Control
Machine with Slope Control
Machine with SmartGrade
Compact Track Loader (CTL) with new Quik-Tatch coupler
Redesigned 333 Come Packed with More Power and Top of the Line Features
333 P-Tier Compact Track Loader
More is being demanded out of skid steers and compact track loaders whether they are grading, clearing, or hauling material. The 333 P-Tier comes with more horsepower compared to the 333G to help customers continue to push their machines to the limit. Additionally, the machine can be equipped with an array of technology and productivity enhancing features.
- With gross horsepower of 108, an 8% increase over the 333G, the 333 P-Tier allows operators in segments like site development, vegetation management, and roadbuilding to have the power they need to go up against the most demanding tasks.
- To keep up with the demands of the increase in power, flow, and pressure, the cooling package has been optimized to increase cooling capabilities.
- To enable machines to run for a full day's worth of work, even in the most demanding applications, the fuel and Diesel Exhaust Fluid (DEF) tanks have been increased in size with optional bolt on fuel tanks available as well.
- Brand new features including a heated and ventilated seat, touchscreen display, handsfree Bluetooth calling, adjustable controls, and EH Dual Leveling can be added to increase operator comfort, visibility, and overall experience.
- Additional productivity enhancing offerings like Grade Control, Joystick and Boom Performance, Ride Control, Anti-Vibration Undercarriage, Deluxe Light-Emitting Diode (LED) Lights, Reversing Fan, High Flow Hydraulics, and Heavy-Duty Grill can be added as well
Large Frame Machines Offer a Suite of Technology Solutions
Compact Track Loader with Laser Slope Control
Dealer and Skid Steer Customer
Technology solutions on John Deere skid steers and compact track loaders can help jobs get completed ahead of schedule and in a safe manner. This means that more jobs can be bid and worked throughout the year and that operators will be more confident working on sites when other people and objects are around.
- Built off the success of the grade control solutions on the 333G, the 333 P-tier and 335 P-tier compact track loaders will have the ability to be equipped with SmartGrade, Slope Control and Laser Slope Control solutions.
- Brand new optional Surround View provides 270 degrees of bird’s eye view visibility above the machine. By utilizing cameras on both the left and right side of the view in addition to a rear camera, images are stitched together and viewable on a dedicated 8” (20cm) display conveniently located within line of sight of the operator in the seat of the machine.
- Large Frame Skid Steers and CTL’s will continue to come equipped with a JDLink modem and Operations Center as standard features. JDLink data is transferred to the John Deere Operations Center which allows customers and dealers to view key machine information such as fleet utilization, maintenance, and machine location.
- New Attachment Manager comes on all machines equipped with the new Touchscreen display (this display is in base on the 334 and 335). This feature takes guess work out of an operator’s hands by coming pre-programmed with optimal flow and pressure settings for John Deere attachments. An operator can simply select which attachment they are running, and the machine can ensure adequate flow and pressure are provided for the best performance.
- This feature also features the ability to save attachment preferences based on operator demand while also limiting the enablement of non-optimal parameters.
- Additionally, preprogrammed joystick layouts can be viewed on the monitor that change depending on attachments but designed by operators for operators with ease of use in mind
- New optional EH Dual Self Leveling feature ensures that bucket or forks stay parallel to the ground throughout the boom raise and lower cycles. This feature enables operators to focus on tasks at hand like truck and trailer loading by not having to control both boom up and down and keep the bucket or fork angle parallel to the ground.
- Slope Indicate, formerly known as Onboard Grade Indication on large frame G-series machines, is included on machines equipped with the new touchscreen display (this display comes standard on the 334 and 335). This feature displays the cross-slope (roll) and main-fall (pitch) of the machine in either degrees or percent. This allows operators to use a relative benchmark to assist in maintaining a desired grade.
New hydraulic system on 333, 334, and 335 P-Tier machines enables greater machine capabilities while saving fuel
334 P-Tier Compact Track Loader with high flow cold planer
To keep up with customer demands when running higher flow and powered attachments, a new pressure compensated load sensing hydraulic system has been added to the 333, 334, and 335 P-Tier machines. This new system provides better multifunctioning, smoother machine control and up to 15% better fuel economy.
- A new pressure compensated load sensing (PCLS) hydraulic system comes standard on 333, 334, and 335 P-Tier skid steers and Compact Track Loaders (CTL’s) replacing the G-series open centered hydraulic system.
- The PCLS hydraulic system more efficiently manages hydraulic demand based on the highest hydraulic function demand which translates to better performance and better fuel efficiency over an open centered hydraulic system.
- PCLS hydraulics system is also quieter than an open center system reducing noise both outside the machine and the noise level inside the cab.
- Hydraulic flows have been increased and the new 334 and 335 provide higher auxiliary pressures for more efficient operation of high flow and high-pressure attachments.
Model |
G-Series Flow |
Gen-A Flow |
G-Series Pressure |
Gen-A Pressure |
333 |
41 GPM |
44 GPM |
3500 PSI |
3500 PSI |
334/335 |
- |
44 GPM |
- |
4000 PSI |
- Multifunctionality improvement can be realized especially by customers that run high flow attachments.
- To ensure that the machine performs as optimal as it should when running high flow attachments, the cooling package has also been redesigned to improve cooling capabilities.
Completely Redesigned Cab that takes Comfort to the Next Level
View of the new cab layout
New touchscreen monitor in upper right corner
The brand new and completely redesigned cab on John Deere large frame skid steers and compact track loaders was designed with feedback from operators to provide them with superior comfort throughout the day which enable them to maximize productivity on jobsites.
- The new cab is a larger than the G-Series cab and is one piece design that is completely sealed and pressurized. This means that outside noise will be lowered and that the cab is better protected from the elements like dust, debris and water.
- A brand-new seat comes standard with large frame Skid Steers and CTL’s as well. Customers and dealers will also have a choice to upgrade this seat to be both heated and ventilated. This means increased comfort can be maintained during both long hot summer days and frigid winters.
- An optional new 20-cm (8-in.) touch screen display (standard on 334 and 335 P-tier) can be equipped on large frame machines. This screen, larger than that found on G-Series machines, enables a better user experience for viewing machine operating parameters and settings and comes packed with technology features that enhance overall operation
- Overall Visibility has been increased by 20% compared to G-Series machines. This has been realized through the addition of glass built into the larger cab. Operators will be able to see out of all sides of the machine much easier which can provide them with increased confidence when completely tasks.
- Hands free Bluetooth with calling capabilities is another new option. Previously, Bluetooth capabilities on G-Series machines was limited to streaming only. This updated feature allows easy communication with others on the jobsite or those in the office.
- Repositioning of key machine controls has been ergonomically optimized so that minimal effort is needed by operators to run the machine just how they like.
- Rocker switches found in G-Series machines have been removed and a new 25 button sealed switch module has taken there place meaning key tasks like starting and stopping the machine, adjusting machine controls, and turning on lights can be done in one spot.
- Both the right- and left-hand joysticks have also been redesigned. The joysticks contain more ergonomically placed rollers and buttons that make running attachments a breeze. The joysticks can be optioned up to be adjusted based on the operator for more comfortable wrist and arm positioning.
Additional attachment offerings for optimal pairing with large frame P-Tier Skid Steers and Compact Track Loaders
P-Tier machines with new attachment offerings
Attachments continue to gain in popularity, especially those that require additional hydraulic flow and pressure. To answer customer’s demands for these attachments, not only has John Deere built new machines to run these attachments more efficiently, but we’re also adding attachments to our lineup that are perfectly suited for the large frame P-Tier machines.
- To round out the existing lineup of new John Deere cold planers powered by Wirtgen Cutting Technology, a larger CP40G Cold Planer will be available that is only compatible with the 333, 334, and 335 P-Tier machines.
- Vegetation management has seen robust growth in recent years with attachments needing to take on the clearing of and increasing amount of acreage.
- The new MK76 Mulching Head will be optimized to work with the 334 and 335 P-Tier machines to clear stringy, fibrous, dense, and fast growing cycle vegetation often found in many parts of the southeast US.
- Building off the lineup of existing mulching heads, a new MH72D will be added to the attachment lineup offering a larger mulching head solution for customers.
- New Attachment Manager comes on all machines equipped with the new Touchscreen display. This feature takes guess work out of an operator’s hands by coming pre-programmed with optimal flow and pressure settings for John Deere attachments. An operator can simply select which attachment they are running, and the machine can ensure adequate flow and pressure are provided for the best performance.
- This feature also features the ability to save attachment preferences based on operator demand while also limiting the enablement of non-optimal parameters.
- Additionally, preprogrammed joystick layouts can be viewed on the monitor that change depending on attachments but designed by operators for operators with ease of use in mind
- To assist operators with running these new attachments, the machine controllers and layout have been redesigned to ensure running all attachments can be done ergonomically and at an operator fingertip by removing any need to remove hands from the joystick to enable or disable certain functionalities
- Many of the current attachments in the John Deere lineup will also be compatible with the new lineup of large frame P-Tier skid steers and compact track loaders. See the future update to the Attachment Guide for more information.
- NOTE: The CP40G, MK76, and MH72D are not available for ordering at this time but will be soon
Achieve Superior Accuracy and Efficiency with Grade Control Solutions
Machine with Laser Slope Control
Machine with Slope Control
Machine with SmartGrade
Grade Control Solutions are expanding with the launch of P-tier large frame machines with offerings not only available on the 333 but the 335 as well. These compact track loaders can be outfitted with a range of grade control solutions from 2D Laser Slope Control, SmartGradeTM Ready with Slope Control, and the industry’s first fully integrated 3D grade control solution available on a compact track loader, SmartGradeTM. All these solutions provide an overall, more efficient manner of cutting and spreading material to get to grade the first time and avoid rework, even in tight areas.
2D Laser Slope Control provides a cost effective and precise solution for grading flat pads and simple slopes both in outdoor and indoor settings. Receivers on the blade detect a plane provided by an offboard base station and signal the machine controllers to raise, lower, or pitch the blade automatically to cut the final target grade.
SmartGradeTM Ready with Slope Control is an entry level grade control system that assists operators in grading smooth planar surfaces by automating the blade using machine position or operator desired mainfall and/or crossfall slopes to automate raising, lowering, and tilting of the blade.
SmartGradeTM is a solution that integrates precision 3D grade control technology, from the factory, that takes the guess work out of finish grading on jobsites with 3D models with complex slopes and cut/fill requirements.
Regardless of which option is selected, all three solutions come with standard features that give these machines a unique advantage no matter the jobsite.
- The Deere designed and built 6-way dozer blade attachment is robust enough to cut rough grade but also smooth enough to do precision fine grading and is included in both SmartGradeTM and Slope Control offerings.
- DozerMode can be enabled to allow the machine controls to function like those on a crawler dozer.
- EZ Grade software stabilizes the blade for smoother grading while operating manually.
Quik-Tatch durability improvements allow for greater reliability
Compact Track Loader (CTL) with new Quik-Tatch coupler
An overhaul of the John Deere™ Quik-Tatch coupler means customers can experience less downtime and continue to easily switch back and forth between attachments.
- The redesigned Quik-Tatch coupler will comprise of a straight, flag pin design which replaces the tapered pin design found in G-Series couplers. Additionally, a clevis style plat and boss will be added for further long-term durability.
- Bucket rollback stop surface area has been increased by 46% compared to G-Series design to help extend the life of the Quik-Tatch components
- Increased pawl retraction on new Quik-Tatch couplers compared with that on G-Series couplers means that chances of inadvertently catching on to attachments when swapping is not occurring.
- Improved debris shedding capabilities can be realized through extra relief pathways that help debris fall more easily away from the Quik-Tatch instead of getting caught between cylinders or on top of the coupler itself.
- Thicker and higher strength steel, especially in the front plat, has been added for increased longevity in applications that are running demanding attachments.
- Common assembly design makes it easy to switch between a manual and electric Quik-Tatch over time
Features and specifications are based on published information at the time of publication. Features and specifications are subject to change without notice.
